3. Use Force Method to analyze the indeterminate steel frame in Figure 3, and determine the horizontal support reaction

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

3. Use Force Method to analyze the indeterminate steel frame in Figure 3, and determine the horizontal support reaction

Post by answerhappygod »

3 Use Force Method To Analyze The Indeterminate Steel Frame In Figure 3 And Determine The Horizontal Support Reaction 1
3 Use Force Method To Analyze The Indeterminate Steel Frame In Figure 3 And Determine The Horizontal Support Reaction 1 (15.15 KiB) Viewed 16 times

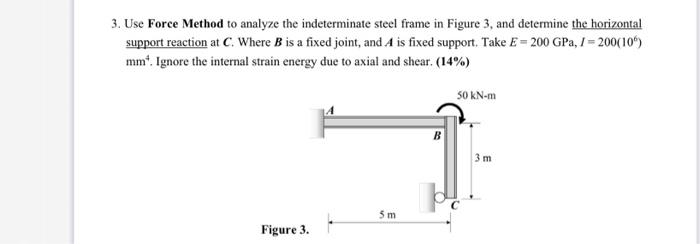

3. Use Force Method to analyze the indeterminate steel frame in Figure 3, and determine the horizontal support reaction at C. Where B is a fixed joint, and A is fixed support. Take E= 200 GPa, /=200(10%) mm¹. Ignore the internal strain energy due to axial and shear. (14%) 50 kN-m 3m Figure 3. 5m 1²
