The epicyclic gear train consists of the sun gear A which is in mesh with the planet gear B. This gear has an inner hub

[answerhappygod]

The Epicyclic Gear Train Consists Of The Sun Gear A Which Is In Mesh With The Planet Gear B This Gear Has An Inner Hub 1 (160.31 KiB) Viewed 22 times

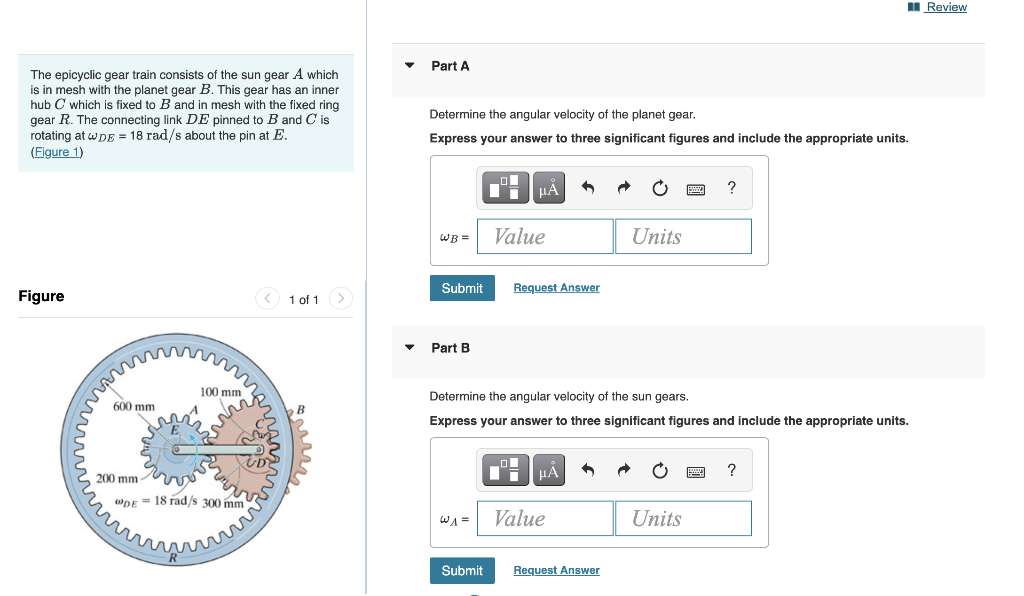

The epicyclic gear train consists of the sun gear A which is in mesh with the planet gear B. This gear has an inner hub C which is fixed to B and in mesh with the fixed ring gear R. The connecting link DE pinned to B and C is rotating at WDE = 18 rad/s about the pin at E. (Figure 1) Figure 1 of 1 100 mm DE 18 rad/s 300 mm m 600 mm 200 mm - Part A Determine the angular velocity of the planet gear. Express your answer to three significant figures and include the appropriate units. O 1 μÀ → C ? WB= Units Submit Request Answer Part B Determine the angular velocity of the sun gears. Express your answer to three significant figures and include the appropriate units. LO Di μA ? WA= Units Submit Value Value Request Answer Review
