A 6 m high retaining wall retains 3 m of Soil 1 which overlays Solf 2 as shown in the figure. The water table is at the

Post by answerhappygod »

A 6 M High Retaining Wall Retains 3 M Of Soil 1 Which Overlays Solf 2 As Shown In The Figure The Water Table Is At The 1
A 6 M High Retaining Wall Retains 3 M Of Soil 1 Which Overlays Solf 2 As Shown In The Figure The Water Table Is At The 1 (21.13 KiB) Viewed 41 times

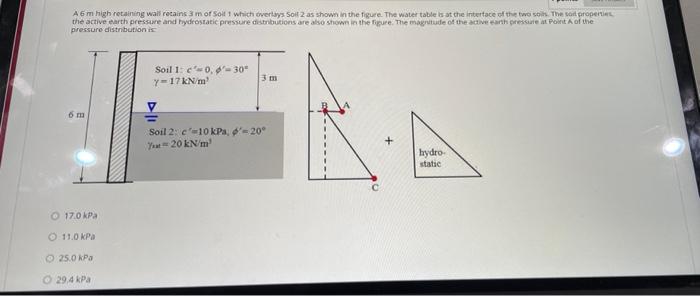

A 6 m high retaining wall retains 3 m of Soil 1 which overlays Solf 2 as shown in the figure. The water table is at the interface of the two soils. The soil properties the active earth pressure and hydrostatic pressure distributions are also shown in the figure. The magnitude of the active earth pressure at Point A of the pressure distribution is -30° Soil 1: c²-0, Y-17 kN/m² 3 m V 6 m Soil 2: c'-10 kPa, -20° You 20 kN/m² + hydro- static O 17.0 kPa O 11.0 kPa Ⓒ25.0 kPa O 29,4 kPa
