The figure below shows the cross-section of a concrete dam founded on permeable soil, below which there is an impermeabl

[answerhappygod]

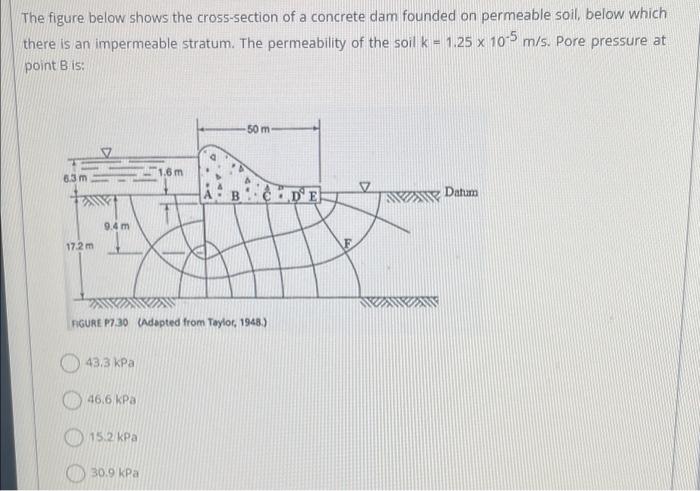

The Figure Below Shows The Cross Section Of A Concrete Dam Founded On Permeable Soil Below Which There Is An Impermeabl 1 (52.32 KiB) Viewed 37 times

The figure below shows the cross-section of a concrete dam founded on permeable soil, below which there is an impermeable stratum. The permeability of the soil k = 1.25 x 10-5 m/s. Pore pressure at point B is: -50 m- 6.3 m Datum 17.2 m FIGURE P7.30 (Adapted from Taylor, 1948.) 43.3 kPa 46.6 kPa 15.2 kPa 30.9 kPa 9.4 m DE Σ
