The L-shaped area shown in the Figure carries a 100 kPa uniform load on the ground surface. Find the vertical stress inc

[answerhappygod]

The L Shaped Area Shown In The Figure Carries A 100 Kpa Uniform Load On The Ground Surface Find The Vertical Stress Inc 1 (39.43 KiB) Viewed 30 times

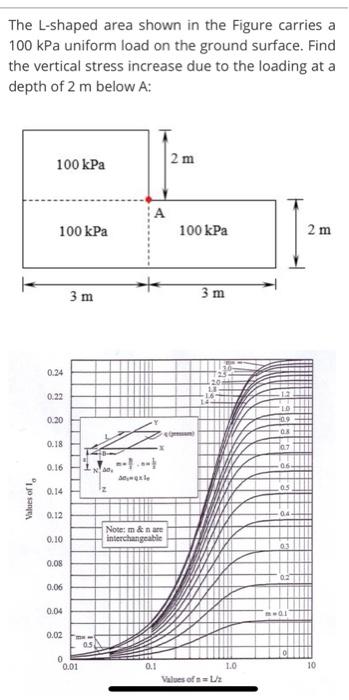

The L-shaped area shown in the Figure carries a 100 kPa uniform load on the ground surface. Find the vertical stress increase due to the loading at a depth of 2 m below A: 2 m 100 kPa 2 m 100 kPa 3 m Values of 1 0.24 0.22 0.20 0.18 0.16 0.14 0.12 0.10 0.08 0.06 0.04 0.02 0 0.01 0.5 A0₂ Axle Note: m & n are interchangeable 0.1 100 kPa 3 m Values of n = L/z 1.0 12 1.0 -0.9 0.8 07 .0.5. 04 03 0.2 modi 10
