A rectangular foundation 2 m x 3 m carries a uniform pressure of 300 kPa near the surface of a soil mass. Determine the

[answerhappygod]

A Rectangular Foundation 2 M X 3 M Carries A Uniform Pressure Of 300 Kpa Near The Surface Of A Soil Mass Determine The 1 (434.6 KiB) Viewed 36 times

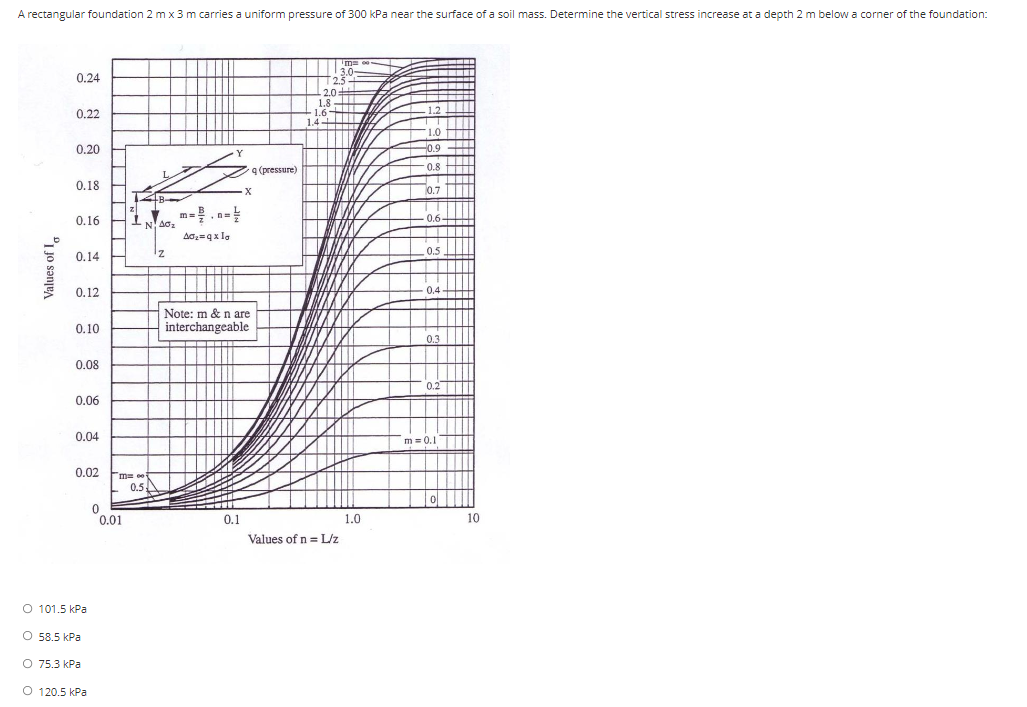

A rectangular foundation 2 m x 3 m carries a uniform pressure of 300 kPa near the surface of a soil mass. Determine the vertical stress increase at a depth 2 m below a corner of the foundation: 'm= 3.0 0.24 0.22 1.2 1.0 0.20 0.9 Y 0.8 0.18 0.7 0.16 0.14 0.12 0.10 0.08 0.06 0.04 0.02 0 Values of I O 101.5 kPa O 58.5 kPa O 75.3 kPa O 120.5 kPa ma o 0.5 0.01 1, m= . Om NA0₂ Ao₂=qx lo Z ▬▬▬▬▬▬▬▬▬▬ Note: m & n are interchangeable 0.1 q (pressure) X 1.8 2.0 1.6 1.4 2.5 Values of n = L/z 1.0 1 0.6 0.5 0.4 0.3 0.2 || m = 0.1 10
