Design the beam shown below for the applied moment of 350kN.m using C25 and S220. h=60cm bw= 30cm and d'=3cm.Use d'=3cm,

Post by answerhappygod »

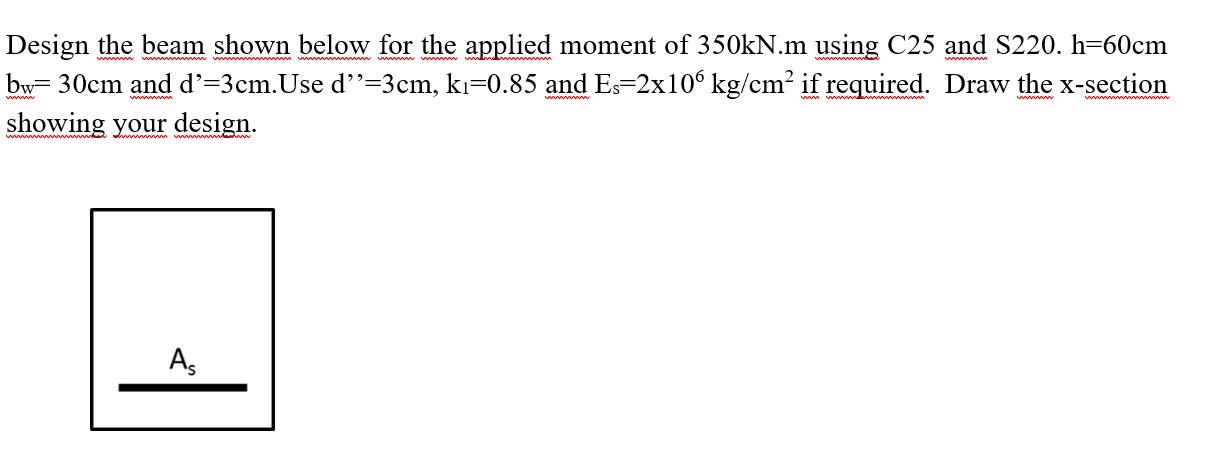

Design The Beam Shown Below For The Applied Moment Of 350kn M Using C25 And S220 H 60cm Bw 30cm And D 3cm Use D 3cm 1
Design The Beam Shown Below For The Applied Moment Of 350kn M Using C25 And S220 H 60cm Bw 30cm And D 3cm Use D 3cm 1 (40.92 KiB) Viewed 34 times
Design the beam shown below for the applied moment of 350kN.m using C25 and S220. h=60cm bw= 30cm and d'=3cm.Use d'=3cm, k₁=0.85 and Es=2x106 kg/cm² if required. Draw the x-section showing your design. www. As
