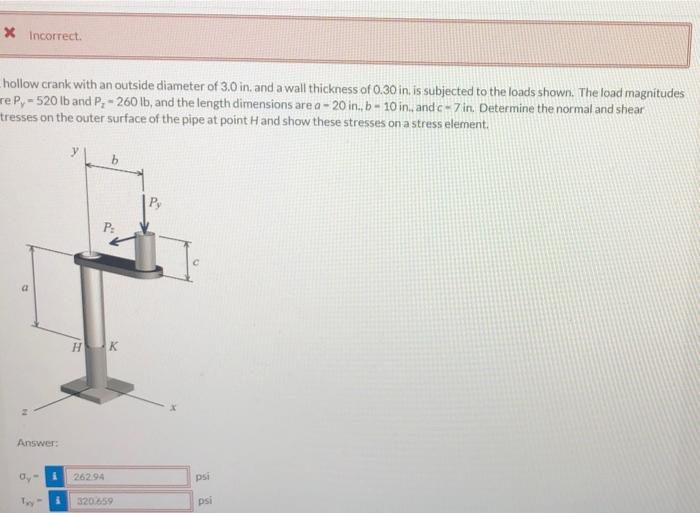

X Incorrect. hollow crank with an outside diameter of 3.0 in. and a wall thickness of 0.30 in. is subjected to the loads shown. The load magnitudes re P,-520 lb and P, -260 lb, and the length dimensions are a -20 in., b-10 in., and c-7 in. Determine the normal and shear tresses on the outer surface of the pipe at point H and show these stresses on a stress element. b a HK Answer: ay Tay i 262.94 320.659 psi psi
