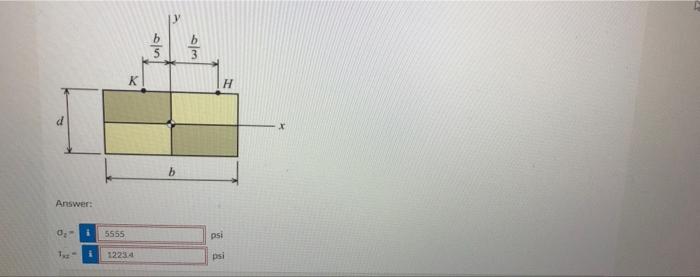

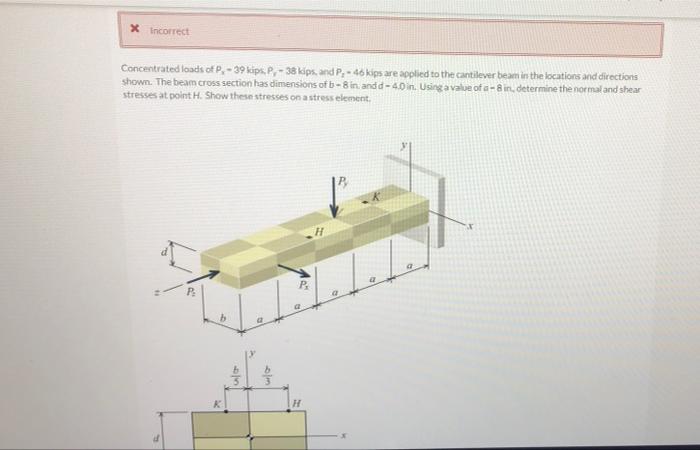

Incorrect Concentrated loads of P,-39 kips, P,-38 kips, and P,-46 kips are applied to the cantilever beam in the locations and directions shown. The beam cross section has dimensions of b-8 in. and d-4.0 in. Using a value of a-8 in, determine the normal and shear stresses at point H. Show these stresses on a stress element. H P: b 65 a x/m 100 P a H a x Q
Answer: 0₂- Tuz 5555 K 12234 b 5 b 3 H psi psi
