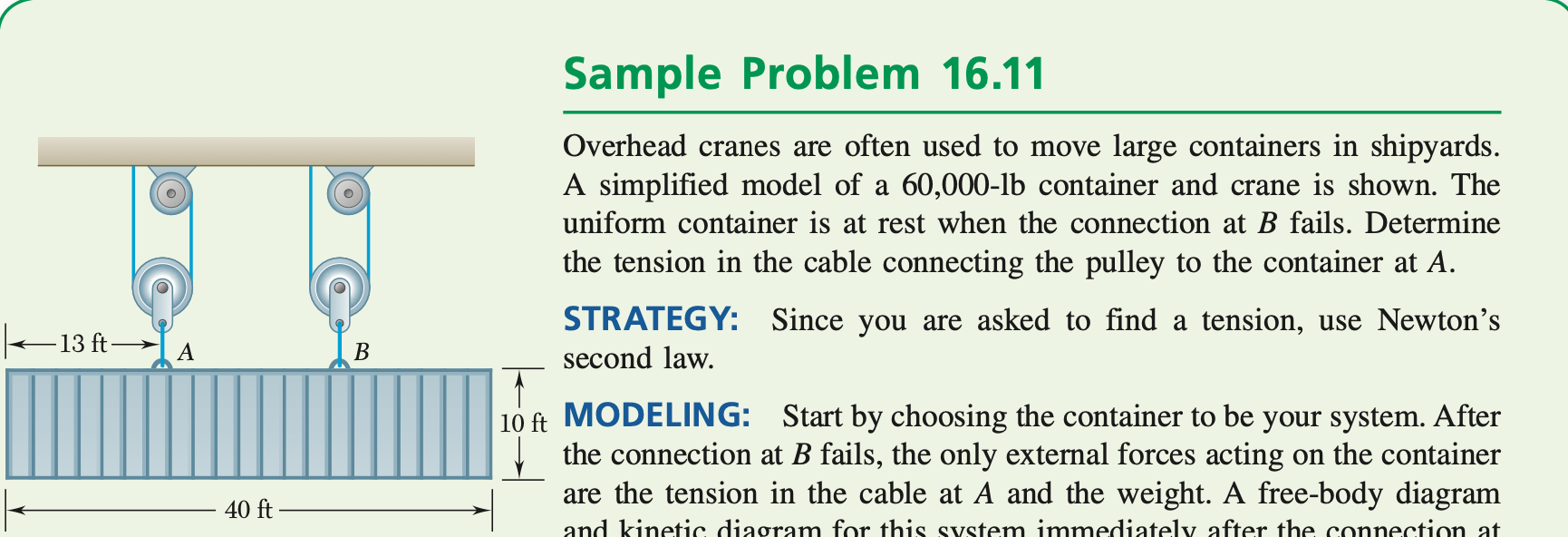

13 ft- A 40 ft B Sample Problem 16.11 Overhead cranes are often used to move large containers in shipyards. A simplified model of a 60,000-lb container and crane is shown. The uniform container is at rest when the connection at B fails. Determine the tension in the cable connecting the pulley to the container at A. Since you are asked to find a tension, use Newton's STRATEGY: second law. T 10 ft MODELING: Start by choosing the container to be your system. After the connection at B fails, the only external forces acting on the container are the tension in the cable at A and the weight. A free-body diagram and kinetic diagram for this system immediately after the connection at
