Q.18 A pile foundation is shown in the figure. The ultimate side resistance Qu ultimate point resistance Q pu and ultima

Post by answerhappygod »

Q 18 A Pile Foundation Is Shown In The Figure The Ultimate Side Resistance Qu Ultimate Point Resistance Q Pu And Ultima 1
Q 18 A Pile Foundation Is Shown In The Figure The Ultimate Side Resistance Qu Ultimate Point Resistance Q Pu And Ultima 1 (41.71 KiB) Viewed 55 times

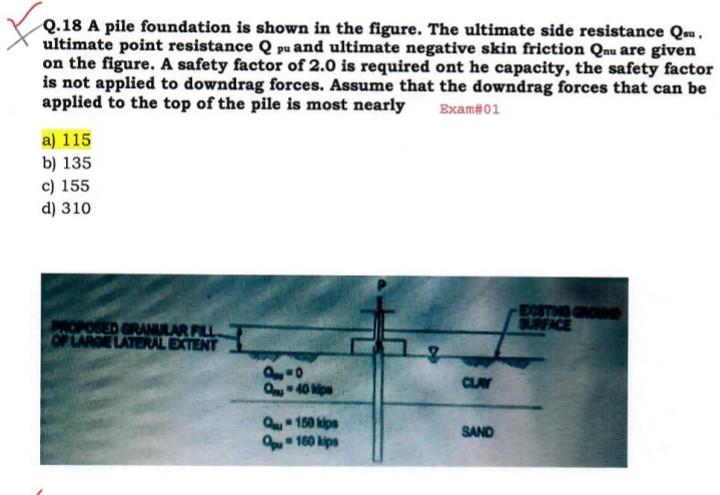

Q.18 A pile foundation is shown in the figure. The ultimate side resistance Qu ultimate point resistance Q pu and ultimate negative skin friction Qnu are given on the figure. A safety factor of 2.0 is required ont he capacity, the safety factor is not applied to downdrag forces. Assume that the downdrag forces that can be applied to the top of the pile is most nearly Exam# 01 a) 115 b) 135 c) 155 d) 310 EXSTING GROUN SURFACE OF LANGE LATERAL EXTENT C a=0 Qu40 kips Q150 kips Op 160 kips CLAY SAND
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
