1) Find Is for the Figure shown. (10Marks) 2) Check the slab thickness for deflection control if slab thickness- 170 mm,

Post by answerhappygod »

1 Find Is For The Figure Shown 10marks 2 Check The Slab Thickness For Deflection Control If Slab Thickness 170 Mm 1
1 Find Is For The Figure Shown 10marks 2 Check The Slab Thickness For Deflection Control If Slab Thickness 170 Mm 1 (29.9 KiB) Viewed 38 times

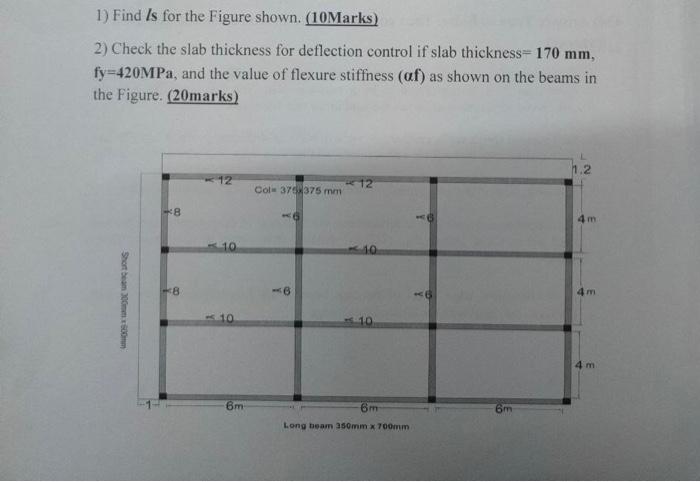

1) Find Is for the Figure shown. (10Marks) 2) Check the slab thickness for deflection control if slab thickness- 170 mm, fy-420MPa, and the value of flexure stiffness (af) as shown on the beams in the Figure. (20marks) 1.2 12 Col- 375 375 mm -8 16 -8 Short beam 300mmx600mm 6m Ĝ 6m Long beam 350mm x 700mm 4m 4m 4m
