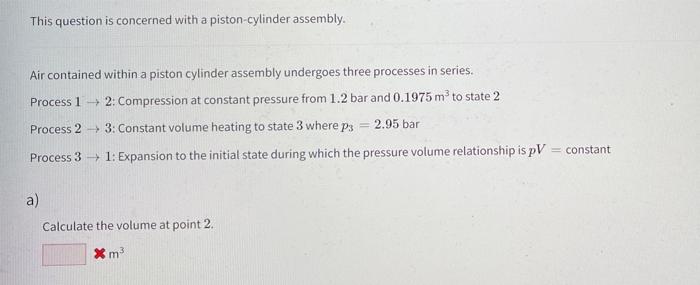

This question is concerned with a piston-cylinder assembly. Air contained within a piston cylinder assembly undergoes three processes in series. Process 12: Compression at constant pressure from 1.2 bar and 0.1975 m³ to state 2 2.95 bar Process 23: Constant volume heating to state 3 where ps = Process 3 1: Expansion to the initial state during which the pressure volume relationship is pV a) Calculate the volume at point 2. Xm³ =constant

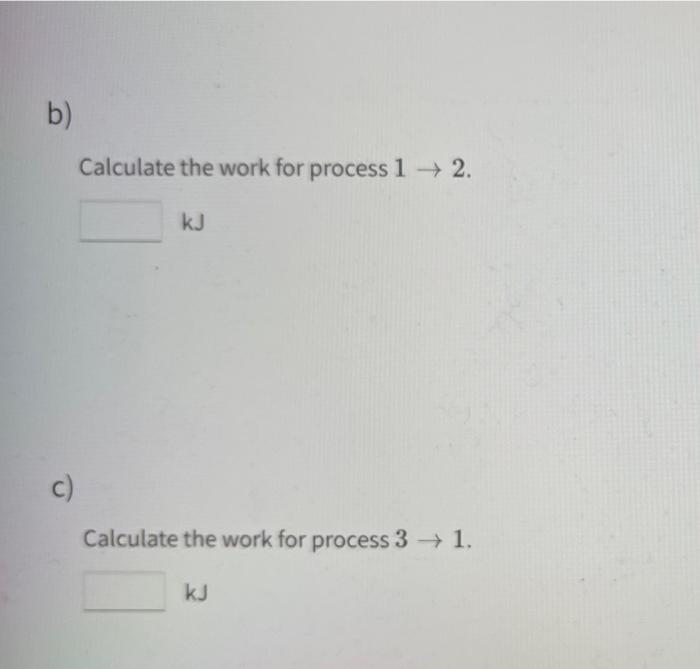

b) Calculate the work for process 1 → 2. kJ c) Calculate the work for process 3 →1. kJ
