5. Using the Method of Joints, find the magnitude and sense (Tension or Compression) of the internal forces in members a

Post by answerhappygod »

5 Using The Method Of Joints Find The Magnitude And Sense Tension Or Compression Of The Internal Forces In Members A 1
5 Using The Method Of Joints Find The Magnitude And Sense Tension Or Compression Of The Internal Forces In Members A 1 (73.7 KiB) Viewed 43 times

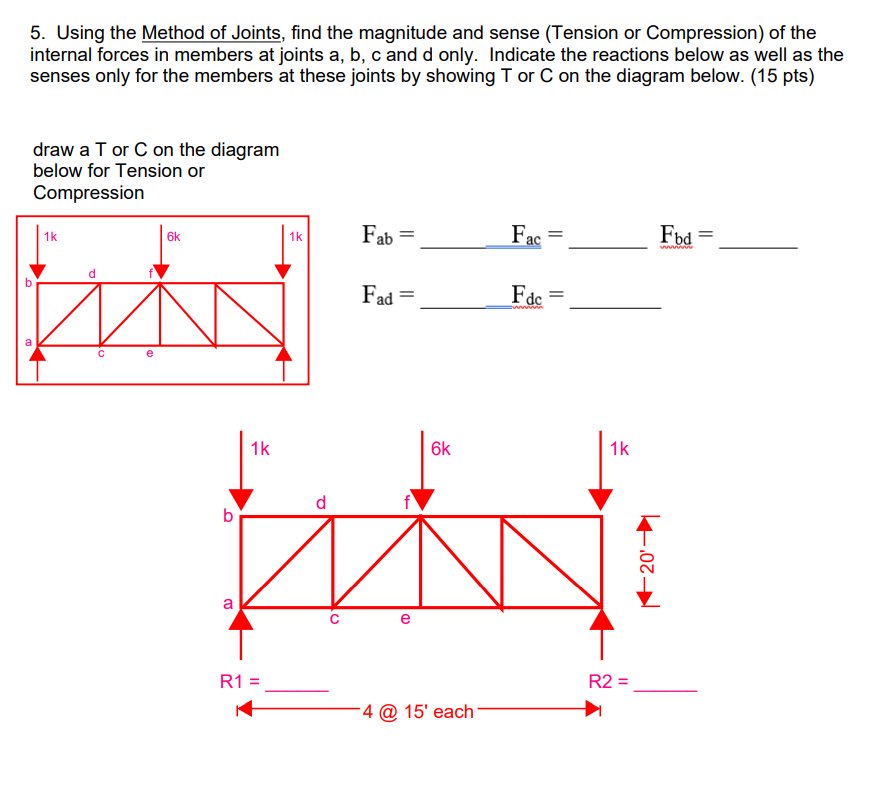

5. Using the Method of Joints, find the magnitude and sense (Tension or Compression) of the internal forces in members at joints a, b, c and d only. Indicate the reactions below as well as the senses only for the members at these joints by showing T or C on the diagram below. (15 pts) draw a T or C on the diagram below for Tension or Compression 1k 6k 1k Fab = Fac= Fbd Fad = Fdc = in e 1k b a R1 = d (D 6k 4 @ 15' each 1k R2 = 20'
