The column along a property line is connected to an interior column by a trapezoidal footing. Column Loads: Q1 2016 kN,

Post by answerhappygod »

The Column Along A Property Line Is Connected To An Interior Column By A Trapezoidal Footing Column Loads Q1 2016 Kn 1
The Column Along A Property Line Is Connected To An Interior Column By A Trapezoidal Footing Column Loads Q1 2016 Kn 1 (29.82 KiB) Viewed 42 times

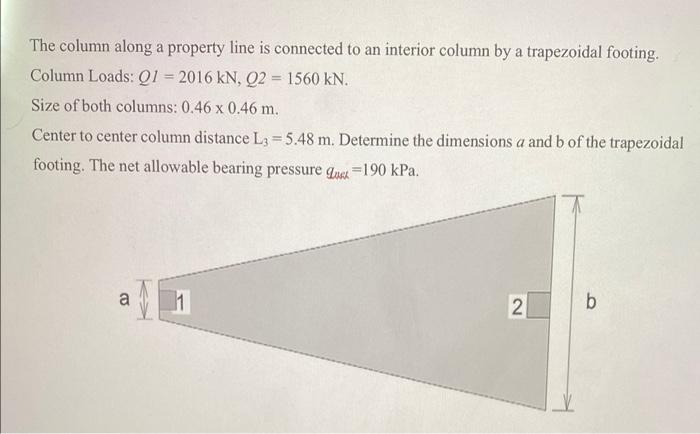

The column along a property line is connected to an interior column by a trapezoidal footing. Column Loads: Q1 2016 kN, Q2 = 1560 kN. Size of both columns: 0.46 x 0.46 m. Center to center column distance L3=5.48 m. Determine the dimensions a and b of the trapezoidal footing. The net allowable bearing pressure qu=190 kPa. a 1 2 b
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
