Problem (2) (25 Points) Using the Stiffness Method, analyze the beam shown below and draw the shear and bending moment d

Post by answerhappygod »

Problem 2 25 Points Using The Stiffness Method Analyze The Beam Shown Below And Draw The Shear And Bending Moment D 1
Problem 2 25 Points Using The Stiffness Method Analyze The Beam Shown Below And Draw The Shear And Bending Moment D 1 (19.32 KiB) Viewed 50 times

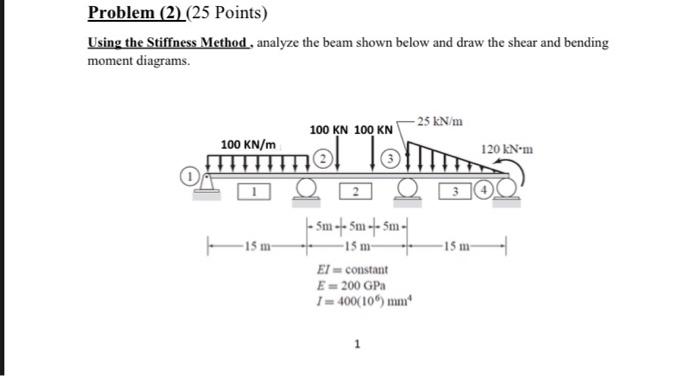

Problem (2) (25 Points) Using the Stiffness Method, analyze the beam shown below and draw the shear and bending moment diagrams. -25 kN/m 100 KN 100 KN 100 KN/m 120 kN m nol To 15m- -5m-5m--5m- -15 m El constant E = 200 GPa I=400(106) mm¹ 1 34 -15 m
