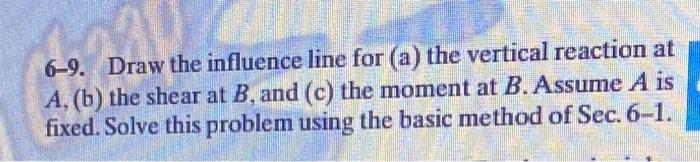

6-9. Draw the influence line for (a) the vertical reaction at A, (b) the shear at B, and (c) the moment at B. Assume A is fixed. Solve this problem using the basic method of Sec. 6-1.

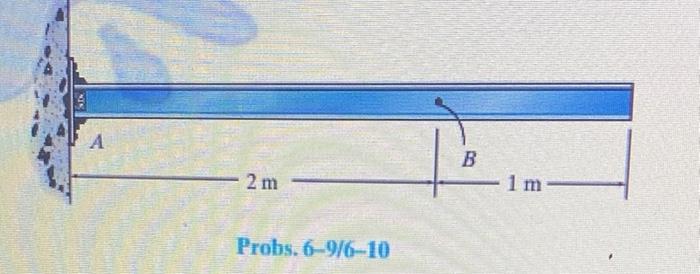

A 2 m Probs. 6-9/6-10 To B 1 m
