6-7. Draw the influence line for (a) the moment at B, (b) the shear at C, and (c) the vertical reaction at B. Solve this
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
6-7. Draw the influence line for (a) the moment at B, (b) the shear at C, and (c) the vertical reaction at B. Solve this

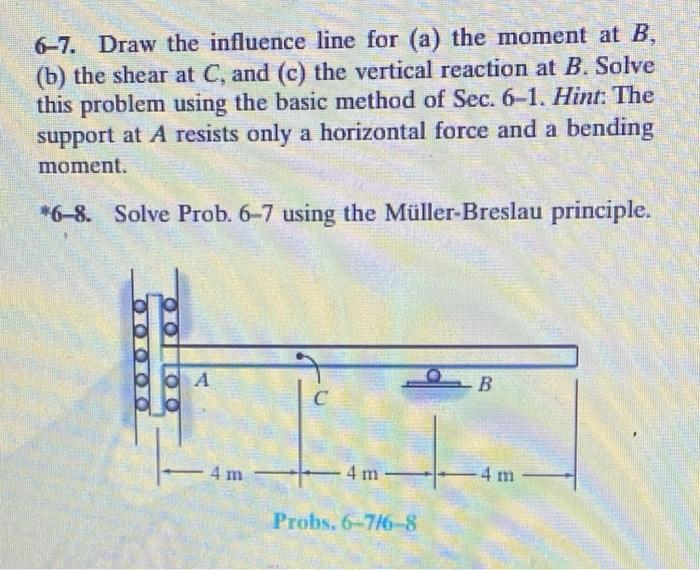

6-7. Draw the influence line for (a) the moment at B, (b) the shear at C, and (c) the vertical reaction at B. Solve this problem using the basic method of Sec. 6-1. Hint: The support at A resists only a horizontal force and a bending moment. *6-8. Solve Prob. 6-7 using the Müller-Breslau principle. B C 60000 ΟΙ ΟΙ ΟΠΟ OA -4 m 4 m Probs. 6-7/6-8 4 m
