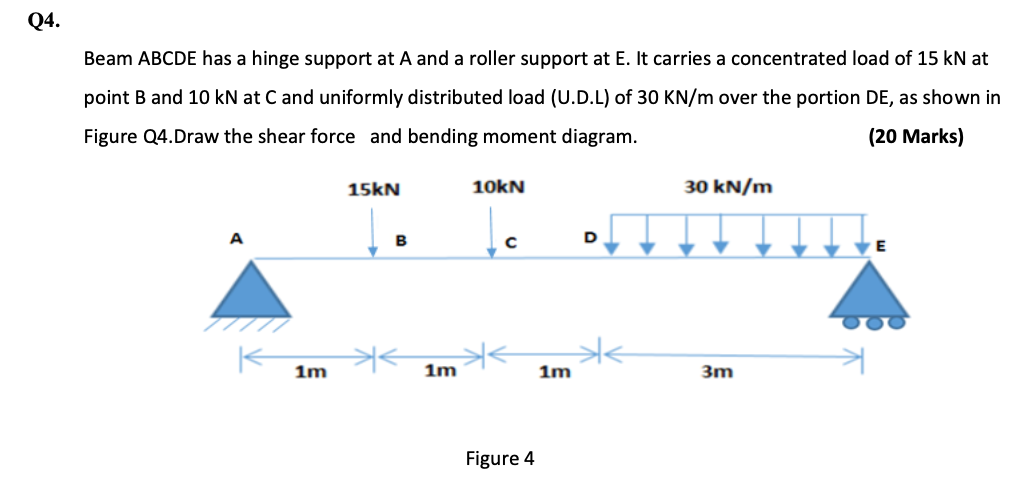

Q4. Beam ABCDE has a hinge support at A and a roller support at E. It carries a concentrated load of 15 kN at point B and 10 kN at C and uniformly distributed load (U.D.L) of 30 KN/m over the portion DE, as shown in Figure Q4.Draw the shear force and bending moment diagram. (20 Marks) 15kN 10kN 30 kN/m A с D E 3m 1m B 1m Figure 4 →K 1m
