Plot normal and tangential stress diagrams
due to the simultaneous application of a moment Mz and a shear Vy
on the
section of the following figure (in the figures center of gravity),
calculating the geometric properties of the section
that are necessary. Finally, check if plastification occurs in
any
section point.
All sections have
wall thickness t.

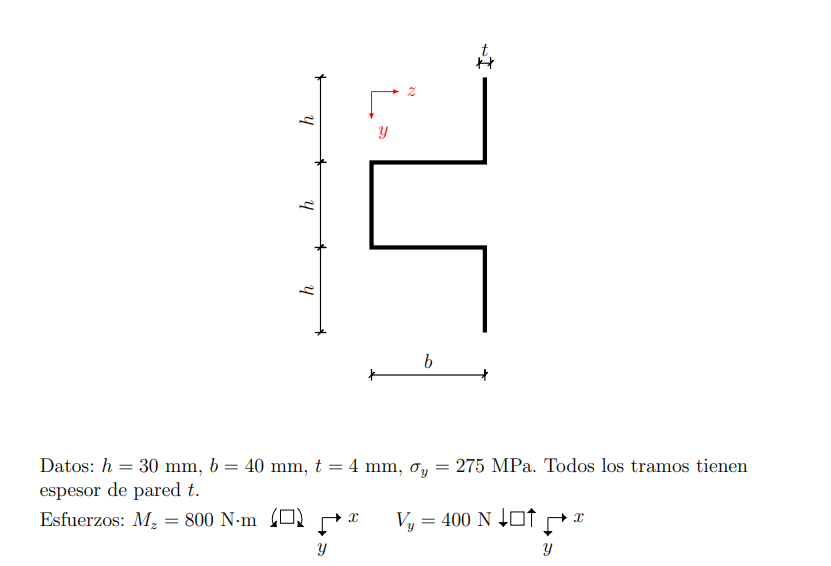

Plot Normal And Tangential Stress Diagrams Due To The Simultaneous Application Of A Moment Mz And A Shear Vy On The Sect 1 (22.33 KiB) Viewed 25 times
Y ㄹ 6 Datos: h = 30 mm, b = 40 mm, t = 4 mm, Oy = : 275 MPa. Todos los tramos tienen espesor de pared t. Esfuerzos: M₂ = 800 N·m (口) Xx Vy = 400 N ↓Of Px Y h h h Y 2
