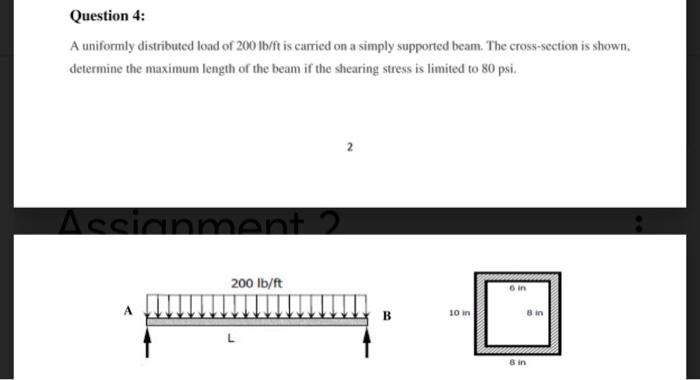

- Question 4 A Uniformly Distributed Load Of 200 Lb Ft Is Carried On A Simply Supported Beam The Cross Section Is Shown 1 (19.92 KiB) Viewed 34 times
- Question 4 A Uniformly Distributed Load Of 200 Lb Ft Is Carried On A Simply Supported Beam The Cross Section Is Shown 2 (38.58 KiB) Viewed 34 times

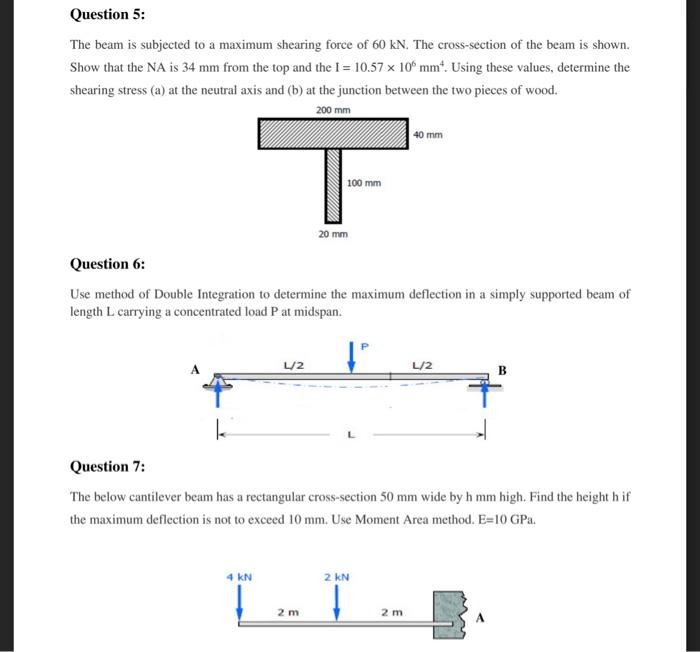

Question 5: The beam is subjected to a maximum shearing force of 60 kN. The cross-section of the beam is shown. Show that the NA is 34 mm from the top and the I = 10.57 x 10 mm. Using these values, determine the shearing stress (a) at the neutral axis and (b) at the junction between the two pieces of wood. 200 mm 40 mm 20 mm Question 6: Use method of Double Integration to determine the maximum deflection in a simply supported beam of length L carrying a concentrated load P at midspan. ↓º L/2 L/2 B k Question 7: The below cantilever beam has a rectangular cross-section 50 mm wide by h mm high. Find the height h if the maximum deflection is not to exceed 10 mm. Use Moment Area method. E=10 GPa. 4 kN 2 kN 2 m 2 m 100 mm
