Question 2: Determine the minimum heighth of the following beam if the maximum flexural stress is 20 MPa. 2.5 kN/m 3m 80

Post by answerhappygod »

Question 2 Determine The Minimum Heighth Of The Following Beam If The Maximum Flexural Stress Is 20 Mpa 2 5 Kn M 3m 80 1
Question 2 Determine The Minimum Heighth Of The Following Beam If The Maximum Flexural Stress Is 20 Mpa 2 5 Kn M 3m 80 1 (13.06 KiB) Viewed 58 times
Question 2 Determine The Minimum Heighth Of The Following Beam If The Maximum Flexural Stress Is 20 Mpa 2 5 Kn M 3m 80 2
Question 2 Determine The Minimum Heighth Of The Following Beam If The Maximum Flexural Stress Is 20 Mpa 2 5 Kn M 3m 80 2 (15.42 KiB) Viewed 58 times

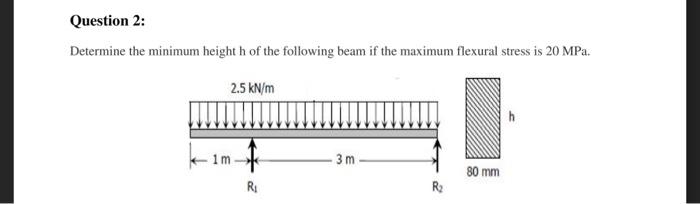

Question 2: Determine the minimum heighth of the following beam if the maximum flexural stress is 20 MPa. 2.5 kN/m 3m 80 mm R₁ R₂

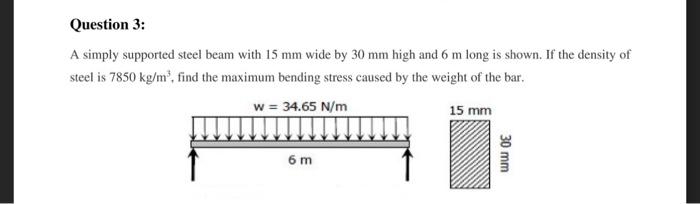

Question 3: A simply supported steel beam with 15 mm wide by 30 mm high and 6 m long is shown. If the density of steel is 7850 kg/m³, find the maximum bending stress caused by the weight of the bar. w = 34.65 N/m 15 mm 6 m 30 mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
