(3) Use Virtual Work to determine slopes at A, B and C, and the displacement at C. Check all results using Moment-Area.

Post by answerhappygod »

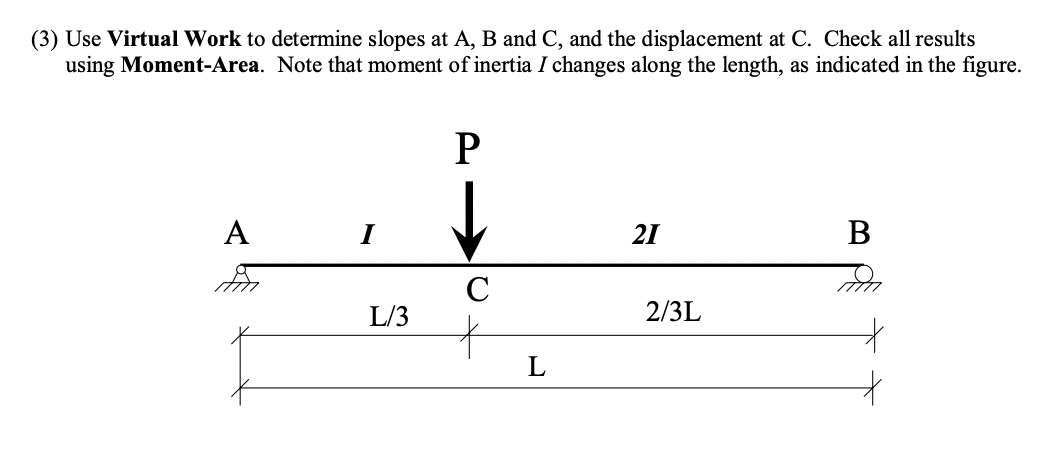

3 Use Virtual Work To Determine Slopes At A B And C And The Displacement At C Check All Results Using Moment Area 1
3 Use Virtual Work To Determine Slopes At A B And C And The Displacement At C Check All Results Using Moment Area 1 (91.86 KiB) Viewed 27 times
(3) Use Virtual Work to determine slopes at A, B and C, and the displacement at C. Check all results using Moment-Area. Note that moment of inertia I changes along the length, as indicated in the figure. P A ↓ 21 B C un * + L/3 L 2/3L
