Q.3) For the loaded steel (E = 200 GPa) truss shown below, find the deformations of members AB, BD and AD. Also calculat

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q.3) For the loaded steel (E = 200 GPa) truss shown below, find the deformations of members AB, BD and AD. Also calculat

Post by answerhappygod »

Q 3 For The Loaded Steel E 200 Gpa Truss Shown Below Find The Deformations Of Members Ab Bd And Ad Also Calculat 1
Q 3 For The Loaded Steel E 200 Gpa Truss Shown Below Find The Deformations Of Members Ab Bd And Ad Also Calculat 1 (47.53 KiB) Viewed 40 times

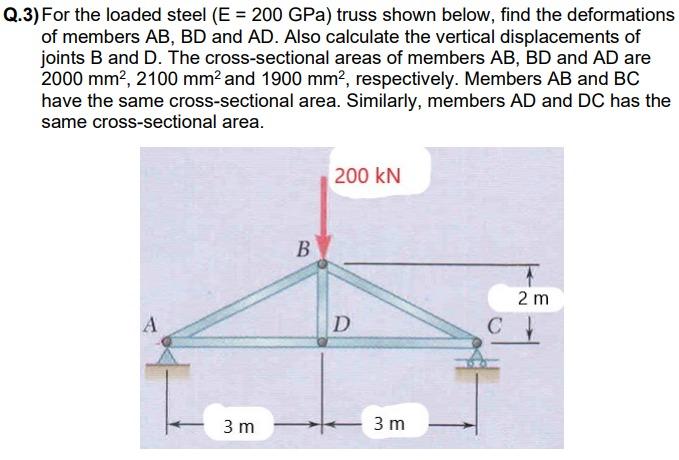

Q.3) For the loaded steel (E = 200 GPa) truss shown below, find the deformations of members AB, BD and AD. Also calculate the vertical displacements of joints B and D. The cross-sectional areas of members AB, BD and AD are 2000 mm², 2100 mm² and 1900 mm², respectively. Members AB and BC have the same cross-sectional area. Similarly, members AD and DC has the same cross-sectional area. 200 kN 2 m A 3 m B D 3 m C
