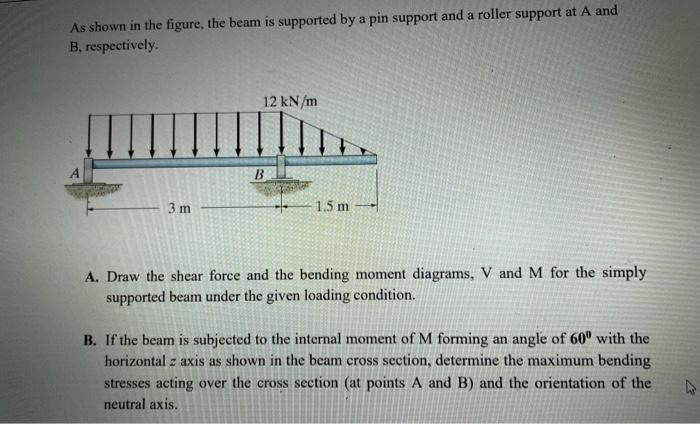

As shown in the figure, the beam is supported by a pin support and a roller support at A and B, respectively. 12 kN/m B 3 m 1.5 m A. Draw the shear force and the bending moment diagrams, V and M for the simply supported beam under the given loading condition. B. If the beam is subjected to the internal moment of M forming an angle of 60⁰ with the horizontal z axis as shown in the beam cross section, determine the maximum bending stresses acting over the cross section (at points A and B) and the orientation of the neutral axis. W

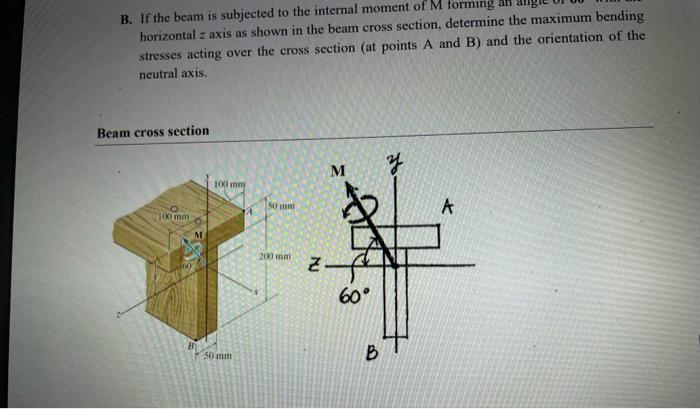

B. If the beam is subjected to the internal moment of M forming an horizontal axis as shown in the beam cross section, determine the maximum bending stresses acting over the cross section (at points A and B) and the orientation of the neutral axis. Beam cross section M A 100 mm M 100 mm 50 mm 50 mm 200 mm Z 60° B
