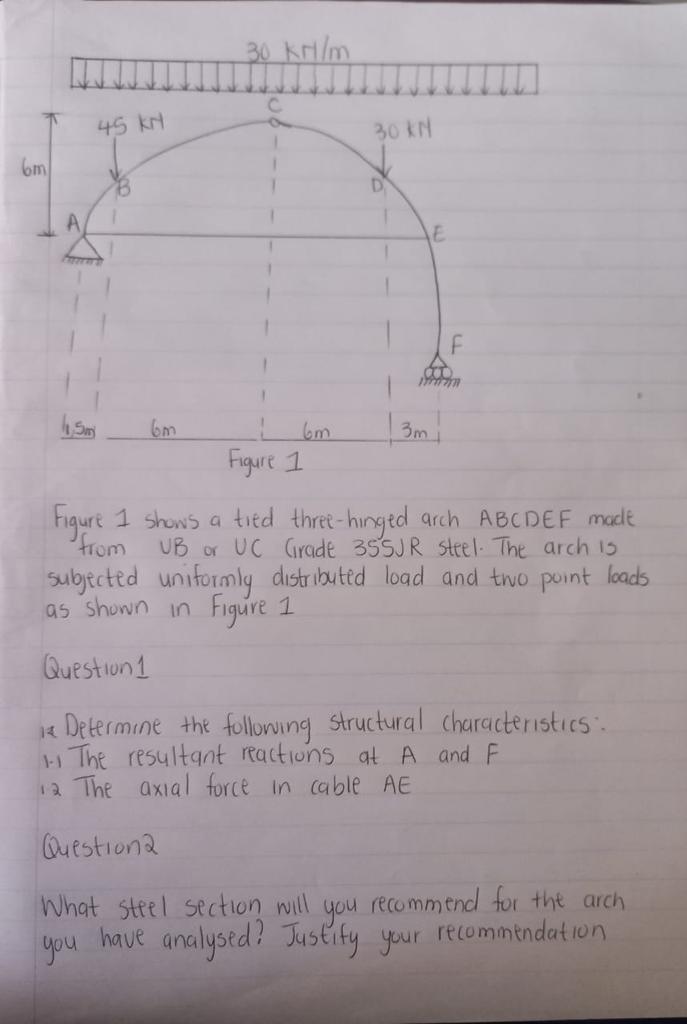

6m 45 KM B 30 kr/m 30 KM 6m 1,5m 6m 3m1 Figure 1 Figure 1 shows a tied three-hinged arch ABCDEF made from UB or UC Grade 355JR steel. The arch is subjected uniformly distributed load and two point loads as shown in Figure 1 Question 1 iz Determine the following structural characteristics. The resultant reactions at A and F 12 The axial force in cable AE Questiona What steel section will you recommend for the arch you have analysed? Justify your recommendation
