16.6 A 5 m high smooth vertical wall retains a clay backfill with and = 25°, and y = 19.0 kN/m³. If the clay c' = = 10 k

[answerhappygod]

16 6 A 5 M High Smooth Vertical Wall Retains A Clay Backfill With And 25 And Y 19 0 Kn M If The Clay C 10 K 1 (35.96 KiB) Viewed 42 times

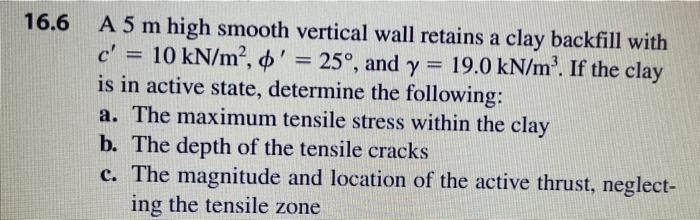

16.6 A 5 m high smooth vertical wall retains a clay backfill with and = 25°, and y = 19.0 kN/m³. If the clay c' = = 10 kN/m², '= 25°, is in active state, determine the following: a. The maximum tensile stress within the clay b. The depth of the tensile cracks c. The magnitude and location of the active thrust, neglect- ing the tensile zone
