1.5-3 A tensile test was performed on a metal specimen having a circular cross section with a diameter of 0.510 inch. Fo

[answerhappygod]

1 5 3 A Tensile Test Was Performed On A Metal Specimen Having A Circular Cross Section With A Diameter Of 0 510 Inch Fo 1 (213.25 KiB) Viewed 33 times

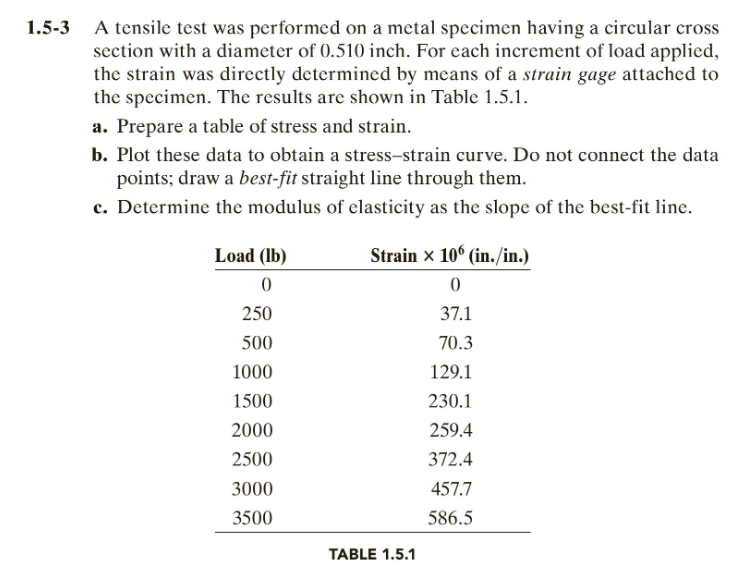

1.5-3 A tensile test was performed on a metal specimen having a circular cross section with a diameter of 0.510 inch. For each increment of load applied, the strain was directly determined by means of a strain gage attached to the specimen. The results are shown in Table 1.5.1. a. Prepare a table of stress and strain. b. Plot these data to obtain a stress-strain curve. Do not connect the data points; draw a best-fit straight line through them. c. Determine the modulus of elasticity as the slope of the best-fit line. Load (lb) Strain x 106 (in./in.) 0 0 250 37.1 500 70.3 1000 129.1 1500 230.1 2000 259.4 2500 372.4 3000 457.7 3500 586.5 TABLE 1.5.1
