PROBLEM 3. A vertical force of 10 kN at joint C is applied to the plane truss system shown in the figure. Determine the

Post by answerhappygod »

Problem 3 A Vertical Force Of 10 Kn At Joint C Is Applied To The Plane Truss System Shown In The Figure Determine The 1
Problem 3 A Vertical Force Of 10 Kn At Joint C Is Applied To The Plane Truss System Shown In The Figure Determine The 1 (84.47 KiB) Viewed 30 times

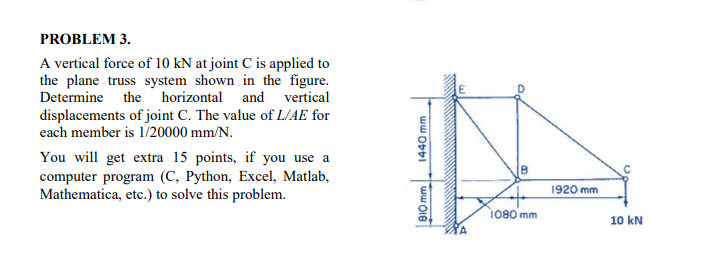

PROBLEM 3. A vertical force of 10 kN at joint C is applied to the plane truss system shown in the figure. Determine the horizontal and vertical displacements of joint C. The value of L/AE for each member is 1/20000 mm/N. You will get extra 15 points, if you use a computer program (C, Python, Excel, Matlab, Mathematica, etc.) to solve this problem. 1440 mm ww.018 B 1080 mm 1920 mm 10 kN
