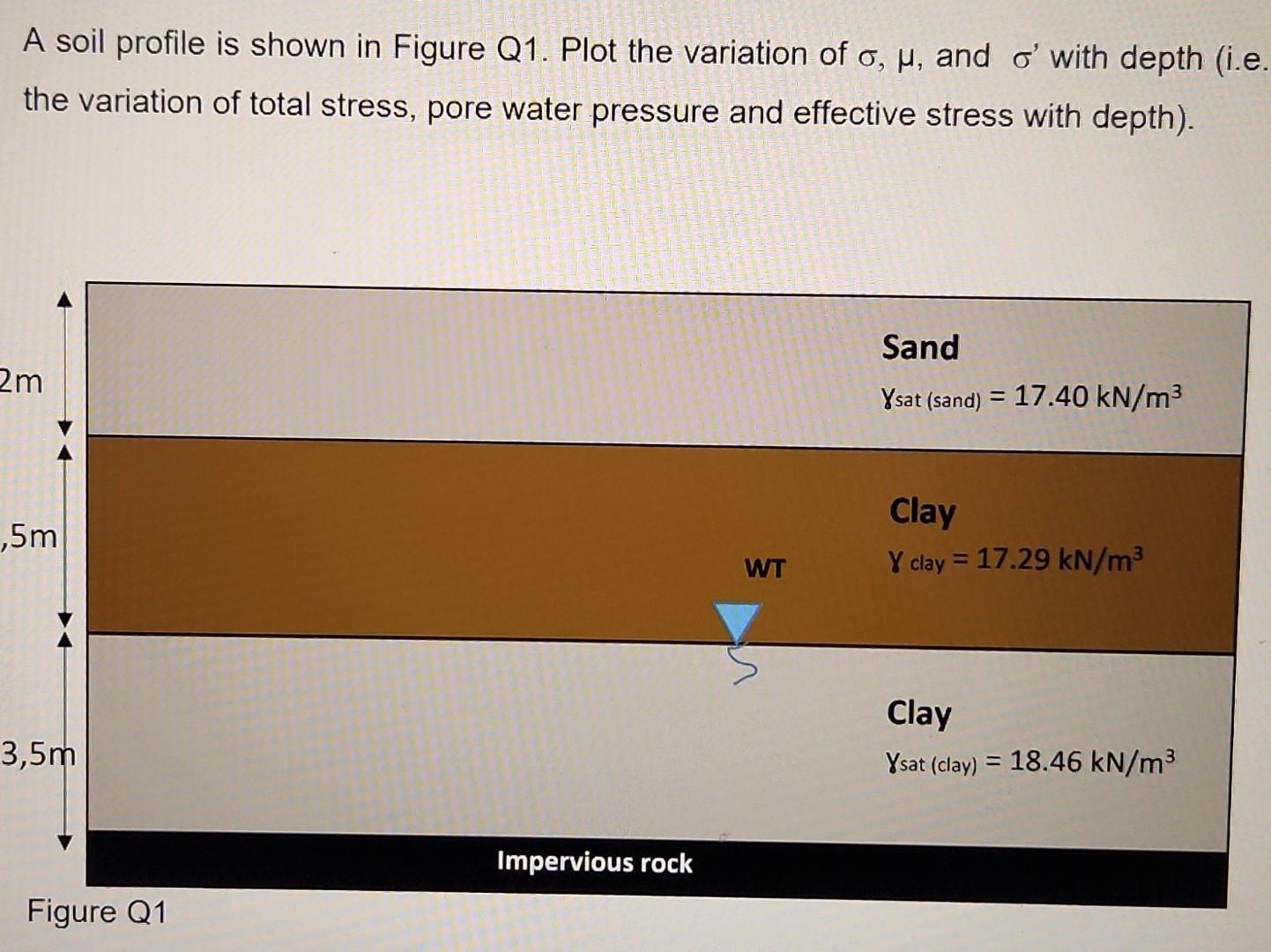

A soil profile is shown in Figure Q1. Plot the variation of o, μ, and o' with depth (i.e. the variation of total stress,
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A soil profile is shown in Figure Q1. Plot the variation of o, μ, and o' with depth (i.e. the variation of total stress,
A soil profile is shown in Figure Q1. Plot the variation of o, μ, and o' with depth (i.e. the variation of total stress, pore water pressure and effective stress with depth). Sand 2m Ysat (sand) = = 17.40 kN/m³ Clay Y clay = 17.29 kN/m³ Clay Ysat (clay) = ,5m 3,5m Figure Q1 Impervious rock WT n 18.46 kN/m³
