Practice 1 Q3 0607 For the section shown: The location e of the horizontal principal axis X-X is 57.14mm, I.-13.82x106,

[answerhappygod]

Practice 1 Q3 0607 For The Section Shown The Location E Of The Horizontal Principal Axis X X Is 57 14mm I 13 82x106 1 (16.09 KiB) Viewed 58 times

Practice 1 Q3 0607 For The Section Shown The Location E Of The Horizontal Principal Axis X X Is 57 14mm I 13 82x106 2 (31.46 KiB) Viewed 58 times

Please answer question A

Practice 1 Q3 0607 For The Section Shown The Location E Of The Horizontal Principal Axis X X Is 57 14mm I 13 82x106 3 (31.46 KiB) Viewed 58 times

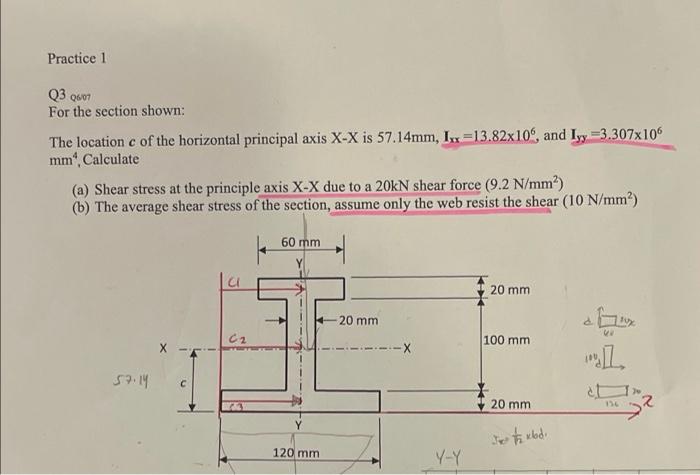

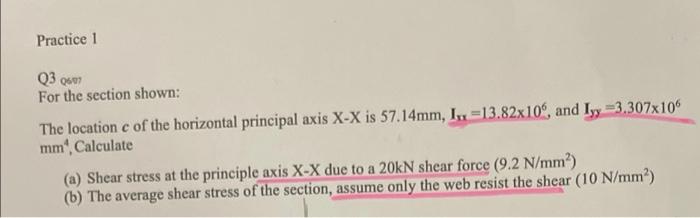

Practice 1 Q3 0607 For the section shown: The location e of the horizontal principal axis X-X is 57.14mm, I.-13.82x106, and Iyy -3.307x106 mm, Calculate (a) Shear stress at the principle axis X-X due to a 20kN shear force (9.2 N/mm²) (b) The average shear stress of the section, assume only the web resist the shear (10 N/mm²)

Practice 1 Q3 06/07 For the section shown: The location c of the horizontal principal axis X-X is 57.14mm, I.-13.82x106, and Iyy =3.307x106 mm², Calculate (a) Shear stress at the principle axis X-X due to a 20kN shear force (9.2 N/mm²) (b) The average shear stress of the section, assume only the web resist the shear (10 N/mm²) 60 mm 20 mm 20 mm 2 C2 100 mm X 57.14 120 mm Y-Y 20 mm. Jod 136
