QUESTION 1. What is influence lines in structural analysis? How to draw influence line diagram using Muller Breslau prin

Post by answerhappygod »

Question 1 What Is Influence Lines In Structural Analysis How To Draw Influence Line Diagram Using Muller Breslau Prin 1
Question 1 What Is Influence Lines In Structural Analysis How To Draw Influence Line Diagram Using Muller Breslau Prin 1 (34.12 KiB) Viewed 53 times

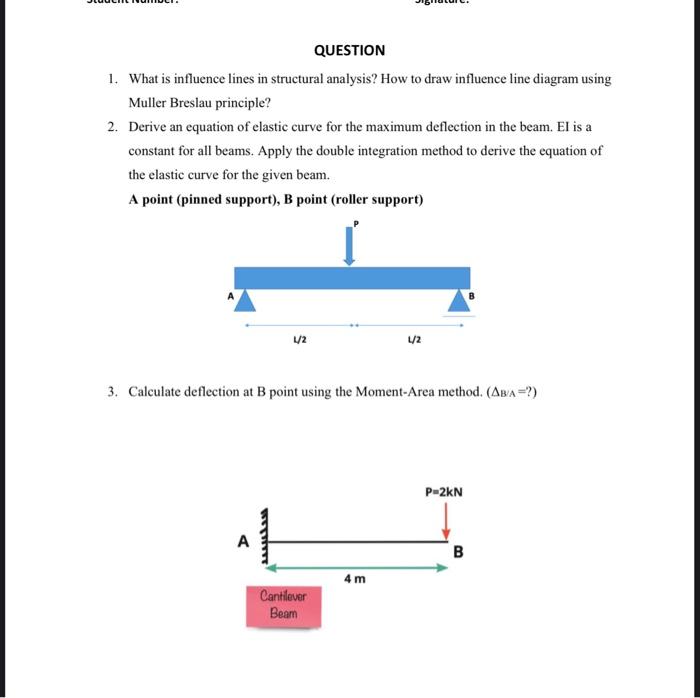

QUESTION 1. What is influence lines in structural analysis? How to draw influence line diagram using Muller Breslau principle? 2. Derive an equation of elastic curve for the maximum deflection in the beam. El is a constant for all beams. Apply the double integration method to derive the equation of the elastic curve for the given beam. A point (pinned support), B point (roller support) 1/2 L/2 3. Calculate deflection at B point using the Moment-Area method. (ABA=?) P=2kN Cantilever Beam 4m B
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
