A compound shaft consists of a titanium alloy [G 6,200 ksi) tube (1) and a solid stainless steel [G 11.500 ksi) shaft (2

Post by answerhappygod »

A Compound Shaft Consists Of A Titanium Alloy G 6 200 Ksi Tube 1 And A Solid Stainless Steel G 11 500 Ksi Shaft 2 1
A Compound Shaft Consists Of A Titanium Alloy G 6 200 Ksi Tube 1 And A Solid Stainless Steel G 11 500 Ksi Shaft 2 1 (69.03 KiB) Viewed 60 times

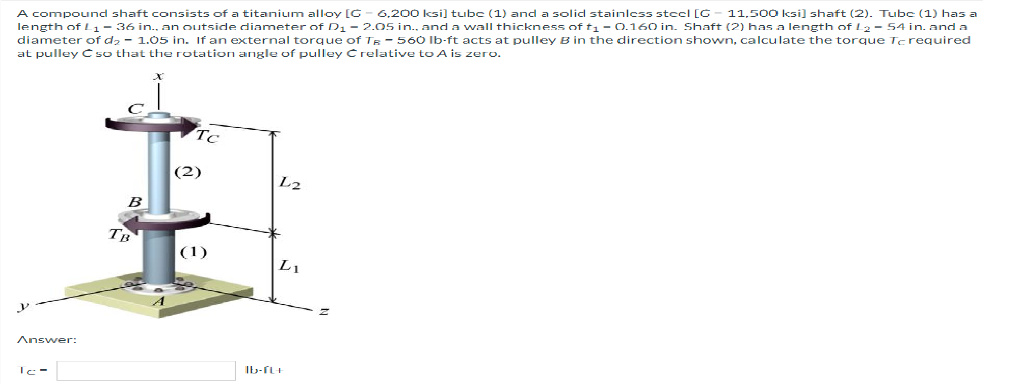

A compound shaft consists of a titanium alloy [G 6,200 ksi) tube (1) and a solid stainless steel [G 11.500 ksi) shaft (2). Tube (1) has a length of L1₁-36 in., an outside diameter of D₁ - 2.05 in., and a wall thickness of f₁ -0.160 in. Shaft (2) has a length of L2 - 54 in. and a diameter of d₂ - 1.05 in. If an external torque of TB - 560 lb-ft acts at pulley B in the direction shown, calculate the torque Tc required at pulley C so that the rotation angle of pulley C relative to A is zero. (2) L2 Answer: Tc- TB (1) L1 lb-ft+
