A bronze c86100 cylinder with diameter d2 = 75 mm is nested inside a stainless steel tube with inner diameter of d₁ = 90
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A bronze c86100 cylinder with diameter d2 = 75 mm is nested inside a stainless steel tube with inner diameter of d₁ = 90

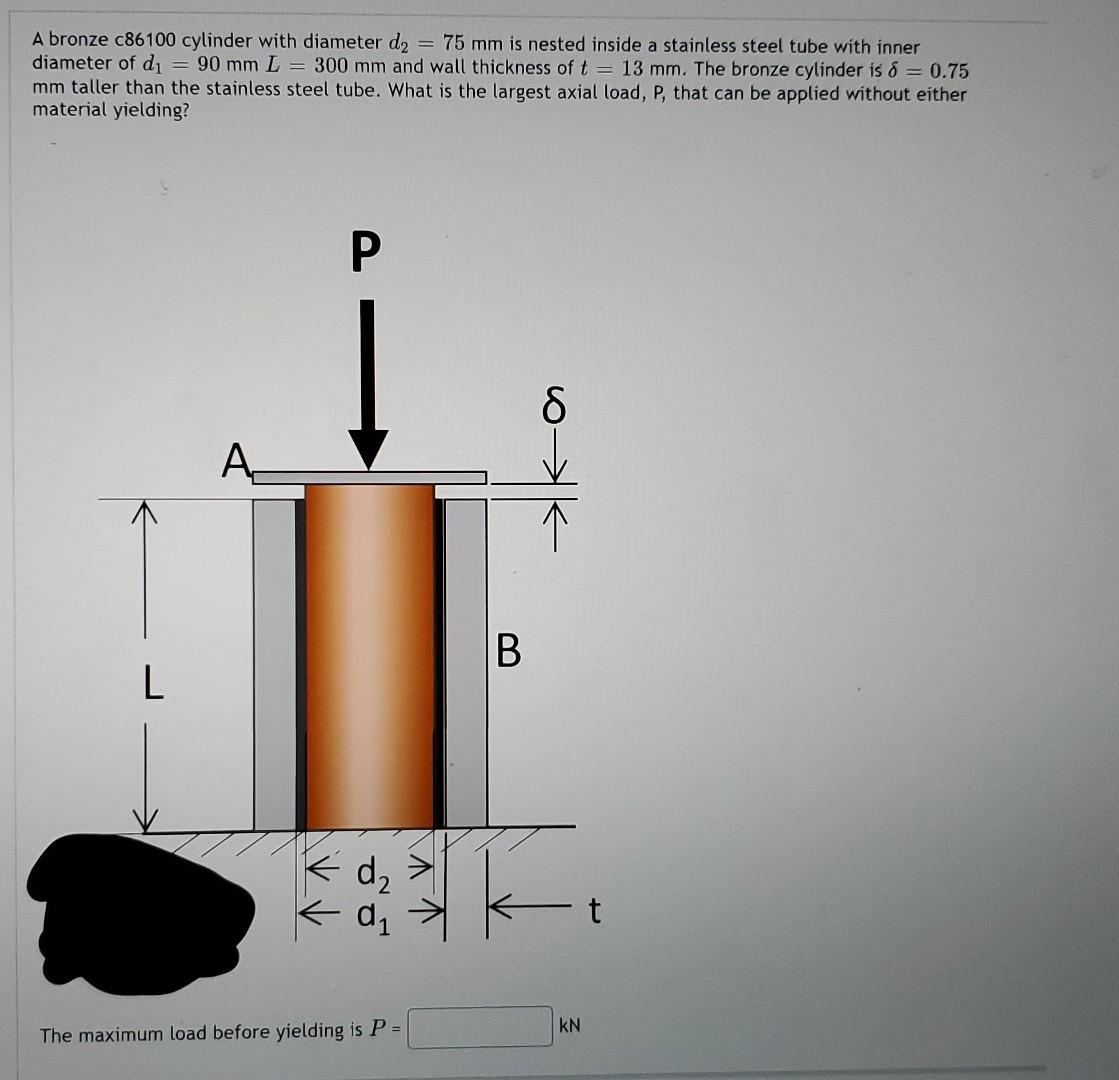

A bronze c86100 cylinder with diameter d2 = 75 mm is nested inside a stainless steel tube with inner diameter of d₁ = 90 mm L = 300 mm and wall thickness of t = 13 mm. The bronze cylinder is 8 = 0.75 mm taller than the stainless steel tube. What is the largest axial load, P, that can be applied without either material yielding? P 8 L The maximum load before yielding is P = B K t KN
