Ex 4.2: Axial Deformation Segments AB and CD of the assembly are solid circular rods, and segment BC is a tube. If the a

[answerhappygod]

Ex 4 2 Axial Deformation Segments Ab And Cd Of The Assembly Are Solid Circular Rods And Segment Bc Is A Tube If The A 1 (136.59 KiB) Viewed 63 times

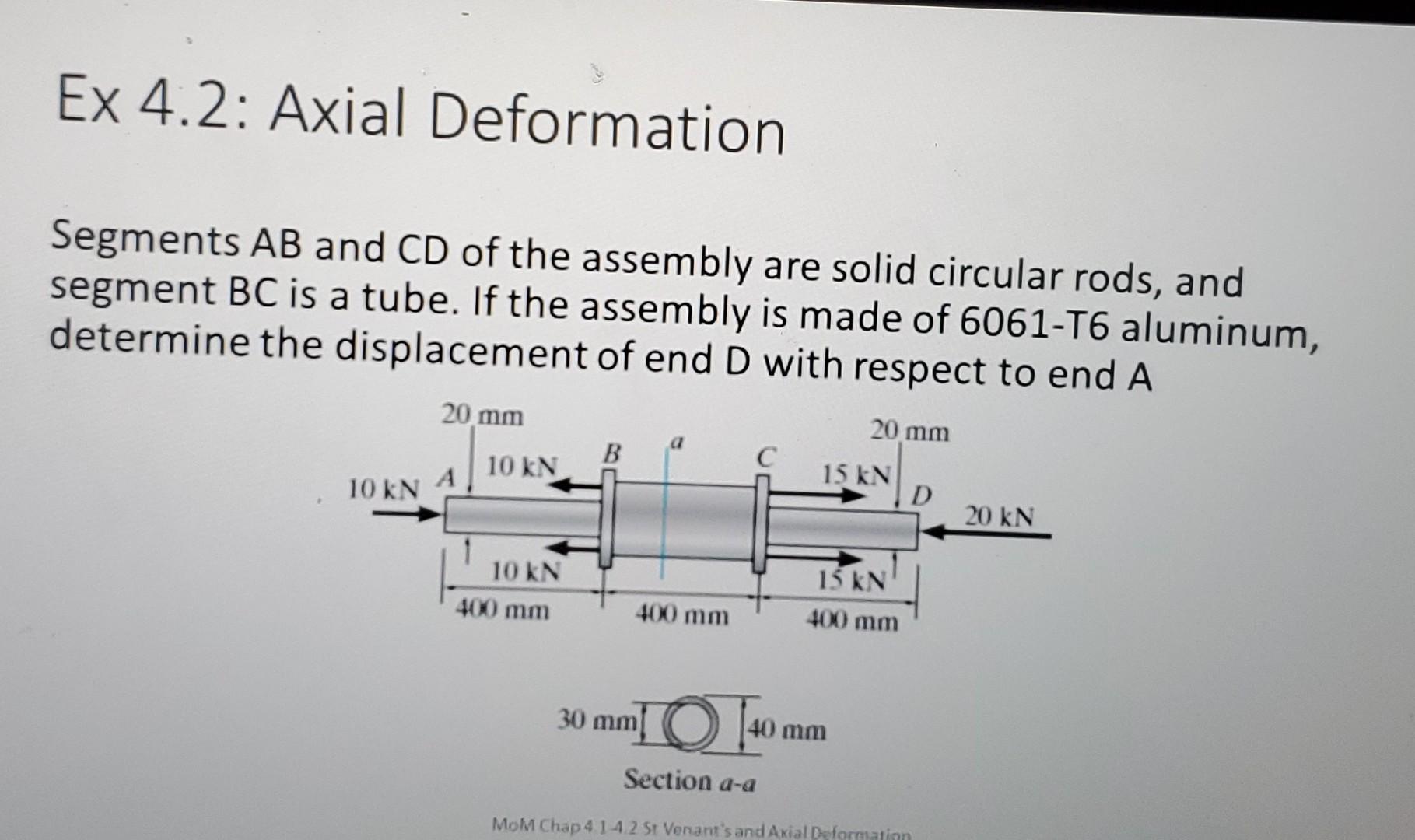

Ex 4.2: Axial Deformation Segments AB and CD of the assembly are solid circular rods, and segment BC is a tube. If the assembly is made of 6061-T6 aluminum, determine the displacement of end D with respect to end A 20 mm 20 mm B 15 kN A 10 kN D 20 kN 15 kN 400 mm 10 kN 10 KN 400 mm 400 mm 30 mm 0401 40 mm Section a-a MoM Chap 41-4.2 St Venant's and Axial Deformation
