14 30kn 10 Kn Lo Kn 3 Tm 2 2300 Mm 2500 Mm Bd Ac Stresses Dat K3 5m Area Find Joint Displacement Member Forces B 1 (59.15 KiB) Viewed 53 times

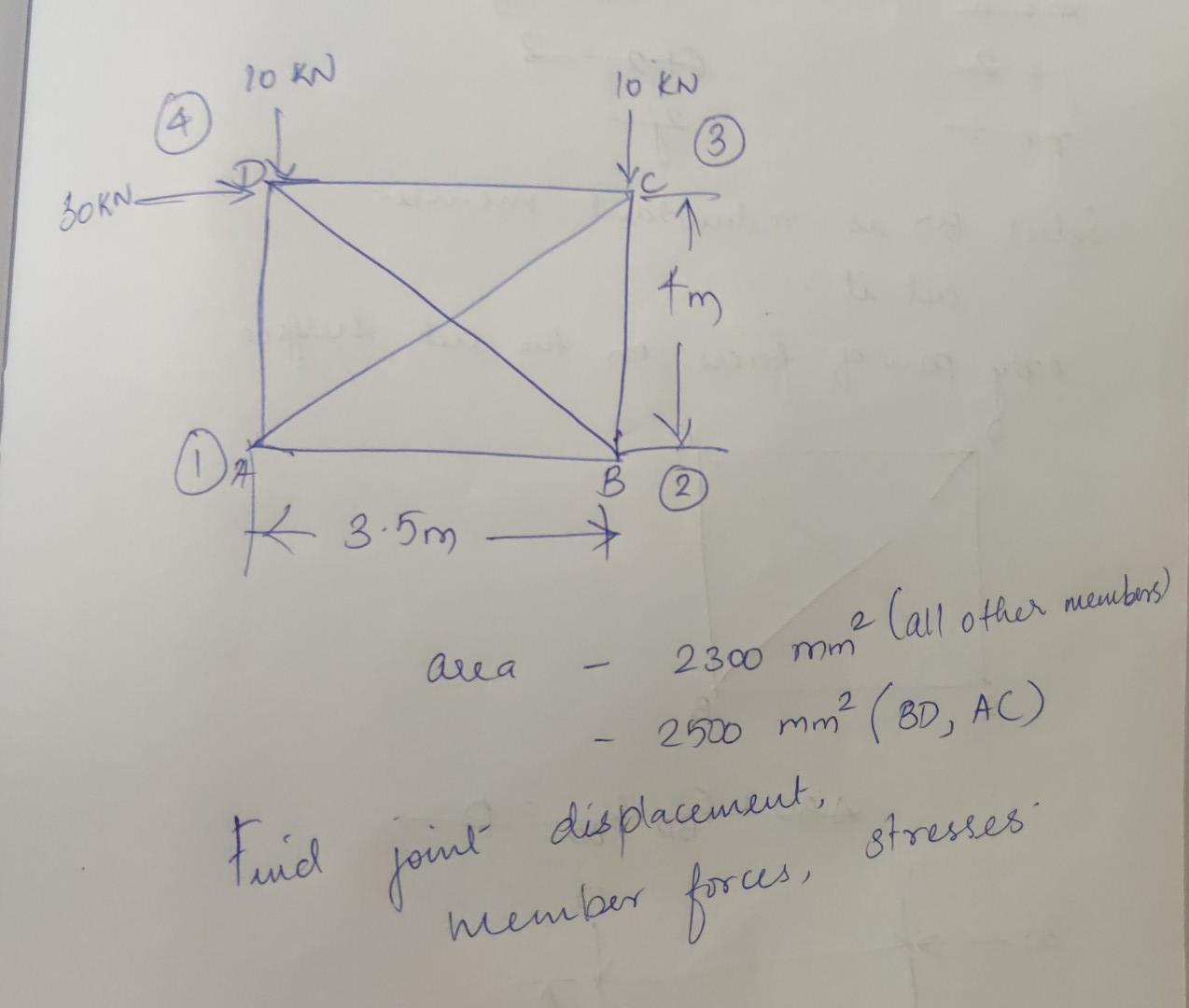

It is a, Reduntant truss with 30 kn acting at D joint
Has a pin support at A and roller at B
14 30KN 10 KN lo KN 3 tm 2 2300 mm 2500 mm² (BD, AC) stresses DAT K3.5m Area Find joint displacement, member forces, B (all other members)
