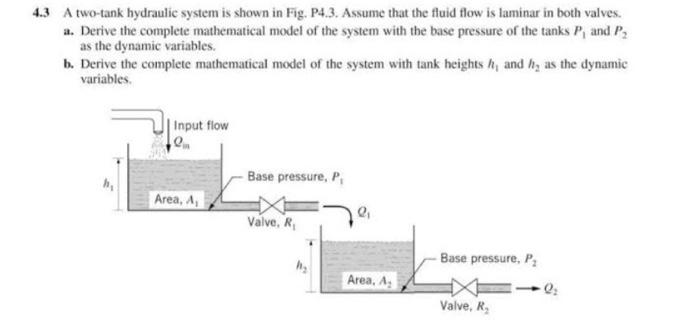

4.3 A two-tank hydraulic system is shown in Fig. P4.3. Assume that the fluid flow is laminar in both valves. a. Derive the complete mathematical model of the system with the base pressure of the tanks P, and P₂ as the dynamic variables. b. Derive the complete mathematical model of the system with tank heights , and h, as the dynamic variables. Input flow 0 Base pressure, P, Valve, R₁ Base pressure, P₂ Valve, R₂ Area, A, Area, A:
