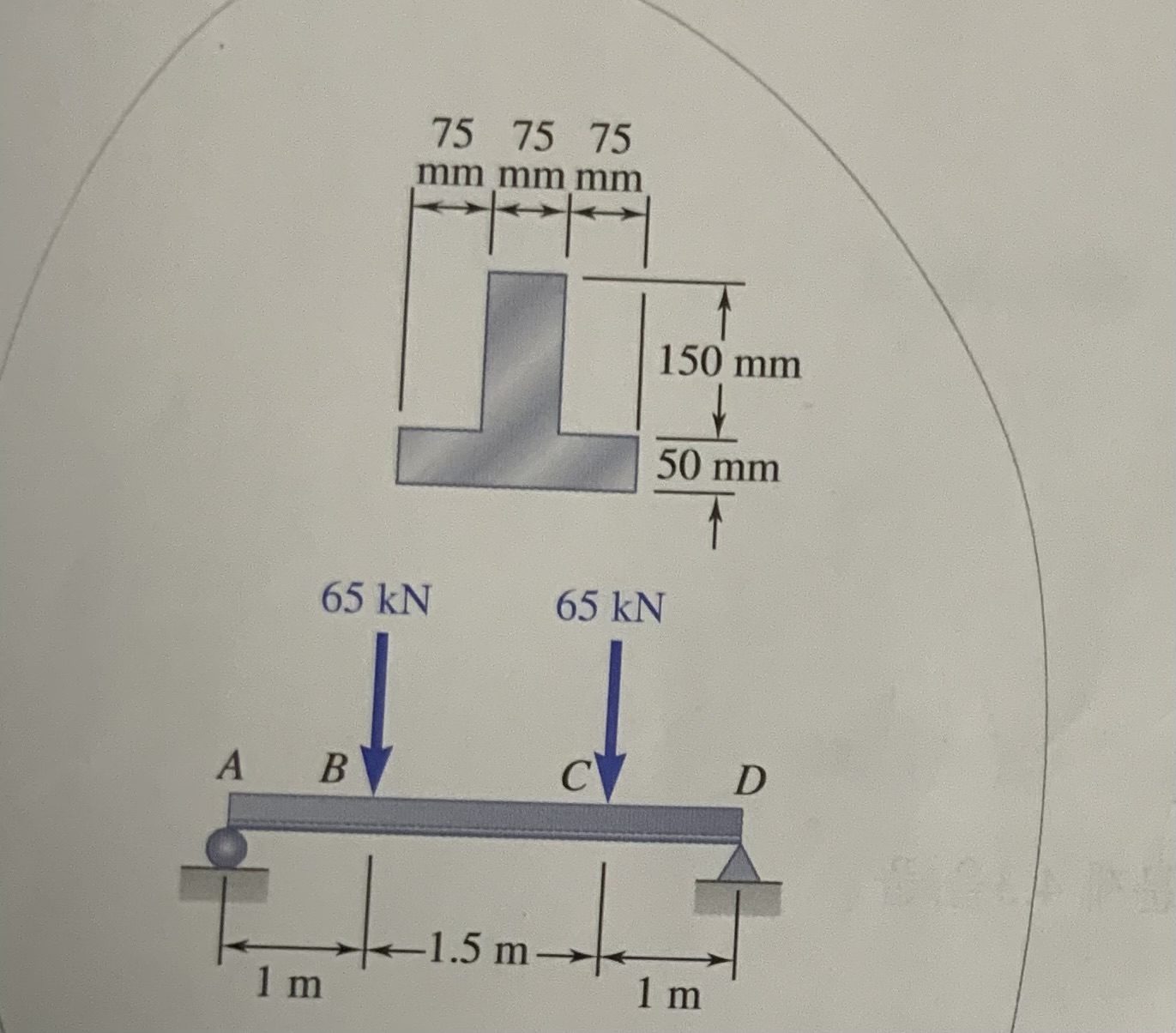

Two vertical forces are applied to a beam of the cross section
shown. Determine the maximum tensile and compressive stresses in
portion BC of the beam.
step by step please!!!
Two Vertical Forces Are Applied To A Beam Of The Cross Section Shown Determine The Maximum Tensile And Compressive Stre 1 (317.92 KiB) Viewed 45 times
75 75 75 mm mm mm ++ 65 kN A B 1 m -1.5 m 150 mm 50 mm 65 kN 1 m D BICE
