A force of P₂ = 620 N is exerted on control arm BC, which is securely attached to the solid 29 mm diameter shaft. Dimens

Post by answerhappygod »

A Force Of P 620 N Is Exerted On Control Arm Bc Which Is Securely Attached To The Solid 29 Mm Diameter Shaft Dimens 1
A Force Of P 620 N Is Exerted On Control Arm Bc Which Is Securely Attached To The Solid 29 Mm Diameter Shaft Dimens 1 (115.69 KiB) Viewed 41 times

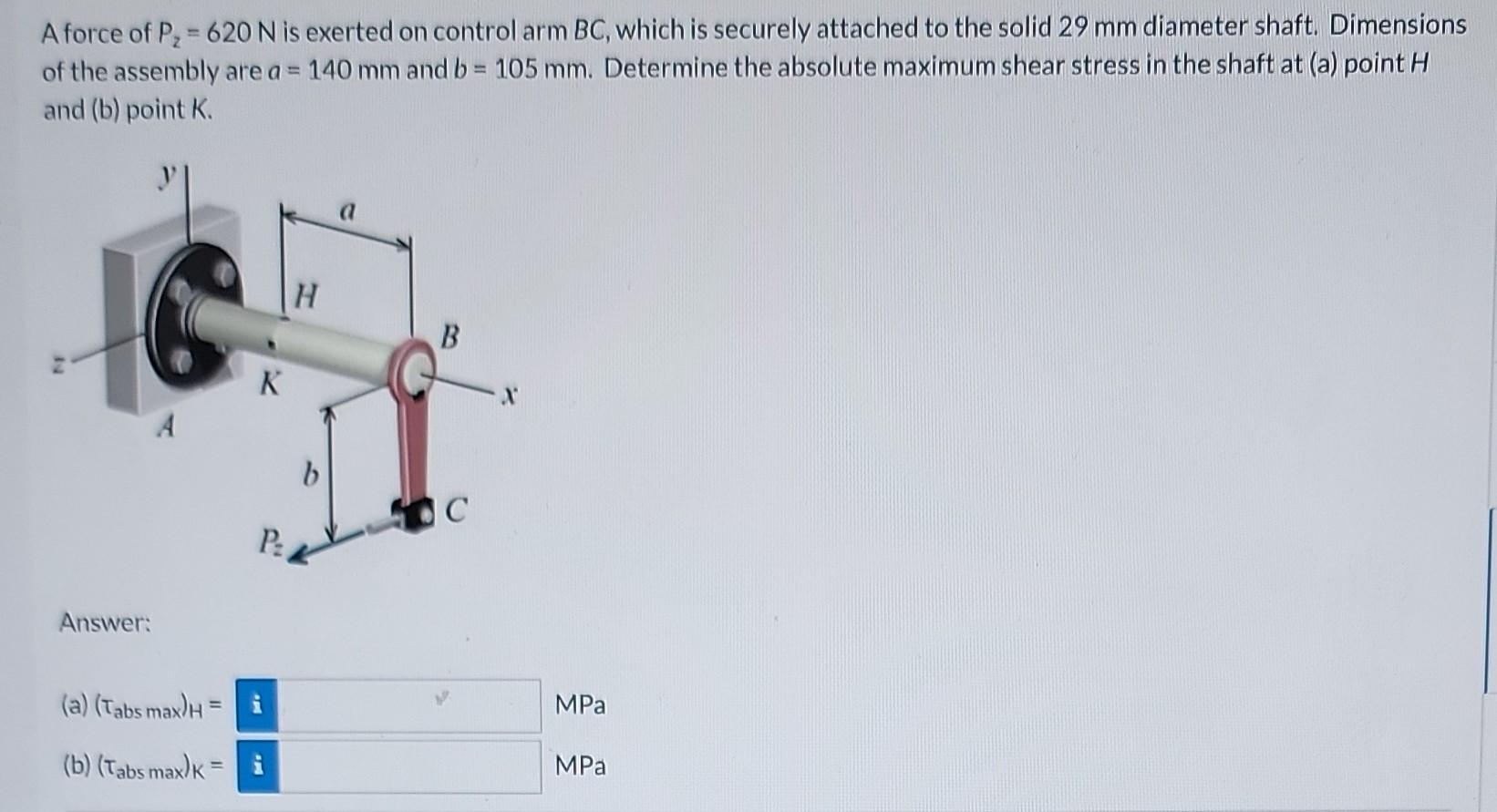

A force of P₂ = 620 N is exerted on control arm BC, which is securely attached to the solid 29 mm diameter shaft. Dimensions of the assembly are a = 140 mm and b = 105 mm. Determine the absolute maximum shear stress in the shaft at (a) point H and (b) point K. H B OC A K P₂ Answer: (a) (Tabs max)H (b) (Tabs max) K = i API b MPa MPa
