A steel pipe with an outside diameter of 3.3 in. and an inside diameter of 3.0 in. supports the loadings shown. Assume x

[answerhappygod]

A Steel Pipe With An Outside Diameter Of 3 3 In And An Inside Diameter Of 3 0 In Supports The Loadings Shown Assume X 1 (93.08 KiB) Viewed 62 times

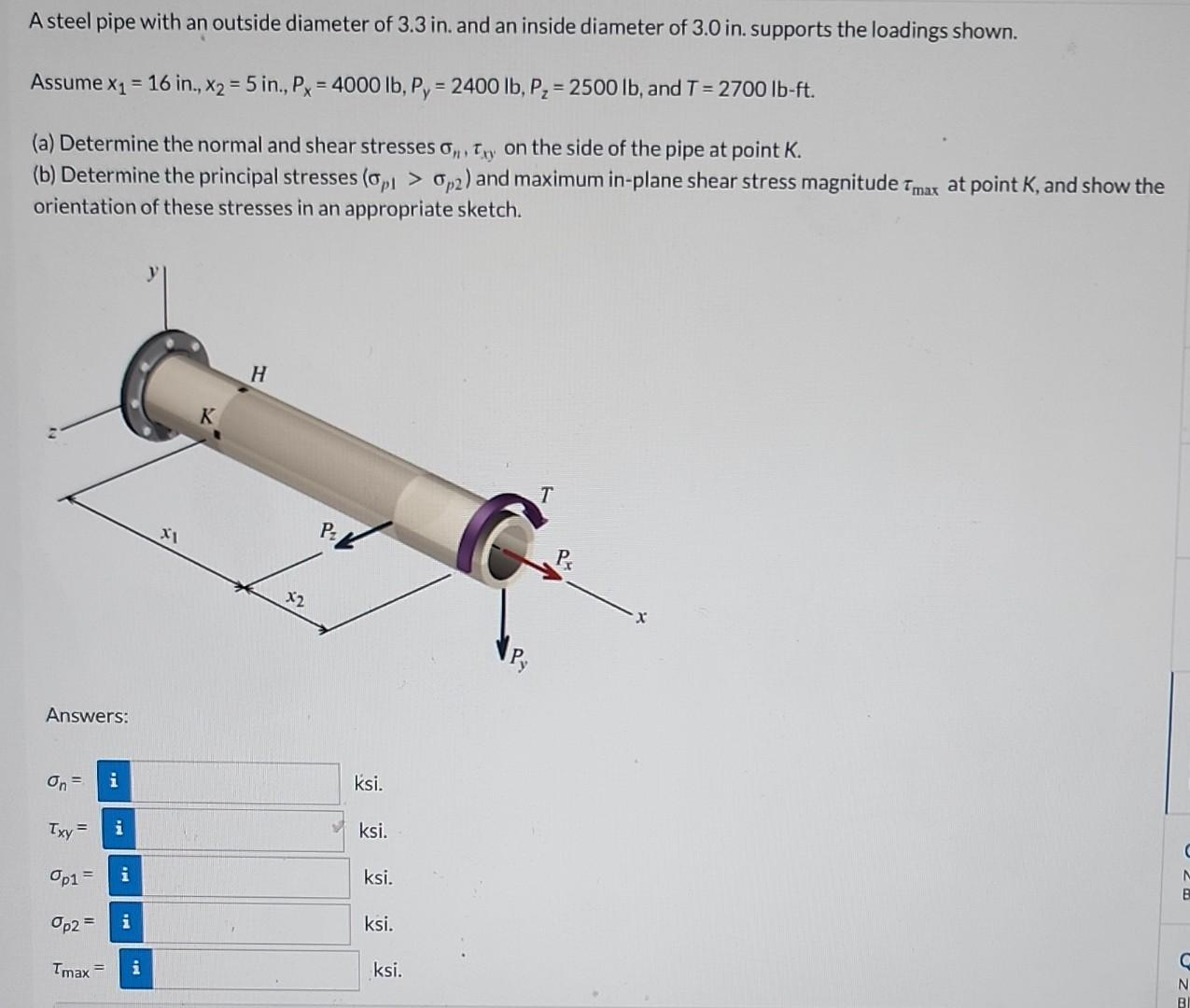

A steel pipe with an outside diameter of 3.3 in. and an inside diameter of 3.0 in. supports the loadings shown. Assume x₁ = 16 in., x2 = 5 in., Px = 4000 lb, Py = 2400 lb, P₂ = 2500 lb, and T = 2700 lb-ft. (a) Determine the normal and shear stresses o Ty on the side of the pipe at point K. (b) Determine the principal stresses (op1 > 2) and maximum in-plane shear stress magnitude Tmax at point K, and show the orientation of these stresses in an appropriate sketch. H T N B C Answers: On = i = Txy Op1= Op2= Tmax= i i i X1 K x2 Pz ksi. ksi. ksi. ksi. ksi. Ps N BI
