Please help on this problem will up vote in the end dear experts
thank you

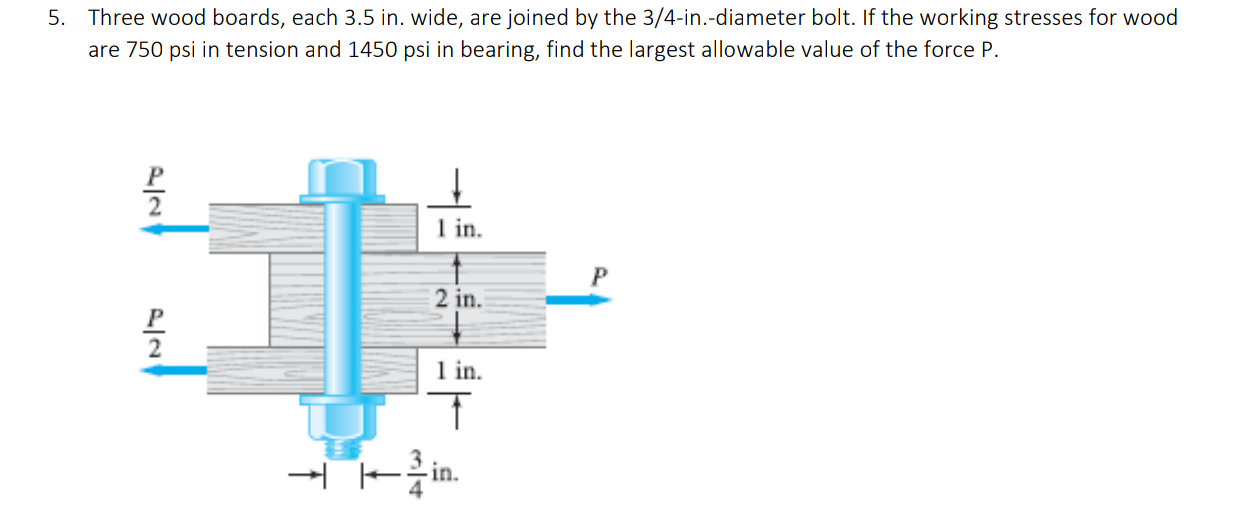

5. Three wood boards, each 3.5 in. wide, are joined by the 3/4-in.-diameter bolt. If the working stresses for wood are 750 psi in tension and 1450 psi in bearing, find the largest allowable value of the force P. 1 in. 2 in. 2 1 in. T in.
