The beam cross section presented below is experiencing 0.5 kNm bending moment. The bending moment is acting on the beam

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

The beam cross section presented below is experiencing 0.5 kNm bending moment. The bending moment is acting on the beam

Post by answerhappygod »

The Beam Cross Section Presented Below Is Experiencing 0 5 Knm Bending Moment The Bending Moment Is Acting On The Beam 1
The Beam Cross Section Presented Below Is Experiencing 0 5 Knm Bending Moment The Bending Moment Is Acting On The Beam 1 (42.72 KiB) Viewed 45 times

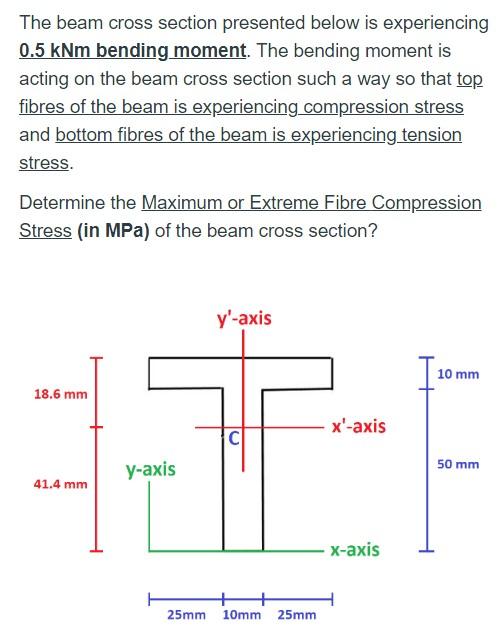

The beam cross section presented below is experiencing 0.5 kNm bending moment. The bending moment is acting on the beam cross section such a way so that top fibres of the beam is experiencing compression stress and bottom fibres of the beam is experiencing tension stress. Determine the Maximum or Extreme Fibre Compression Stress (in MPa) of the beam cross section? y'-axis 10 mm 18.6 mm 50 mm 41.4 mm y-axis 25mm 10mm 25mm x'-axis -x-axis
