The cantilever beam consists of a rectangular structural steel tube shape [E = 30000 ksi; 1= 326 in.4]. For the loading

Post by answerhappygod »

The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 30000 Ksi 1 326 In 4 For The Loading 1
The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 30000 Ksi 1 326 In 4 For The Loading 1 (137.26 KiB) Viewed 34 times

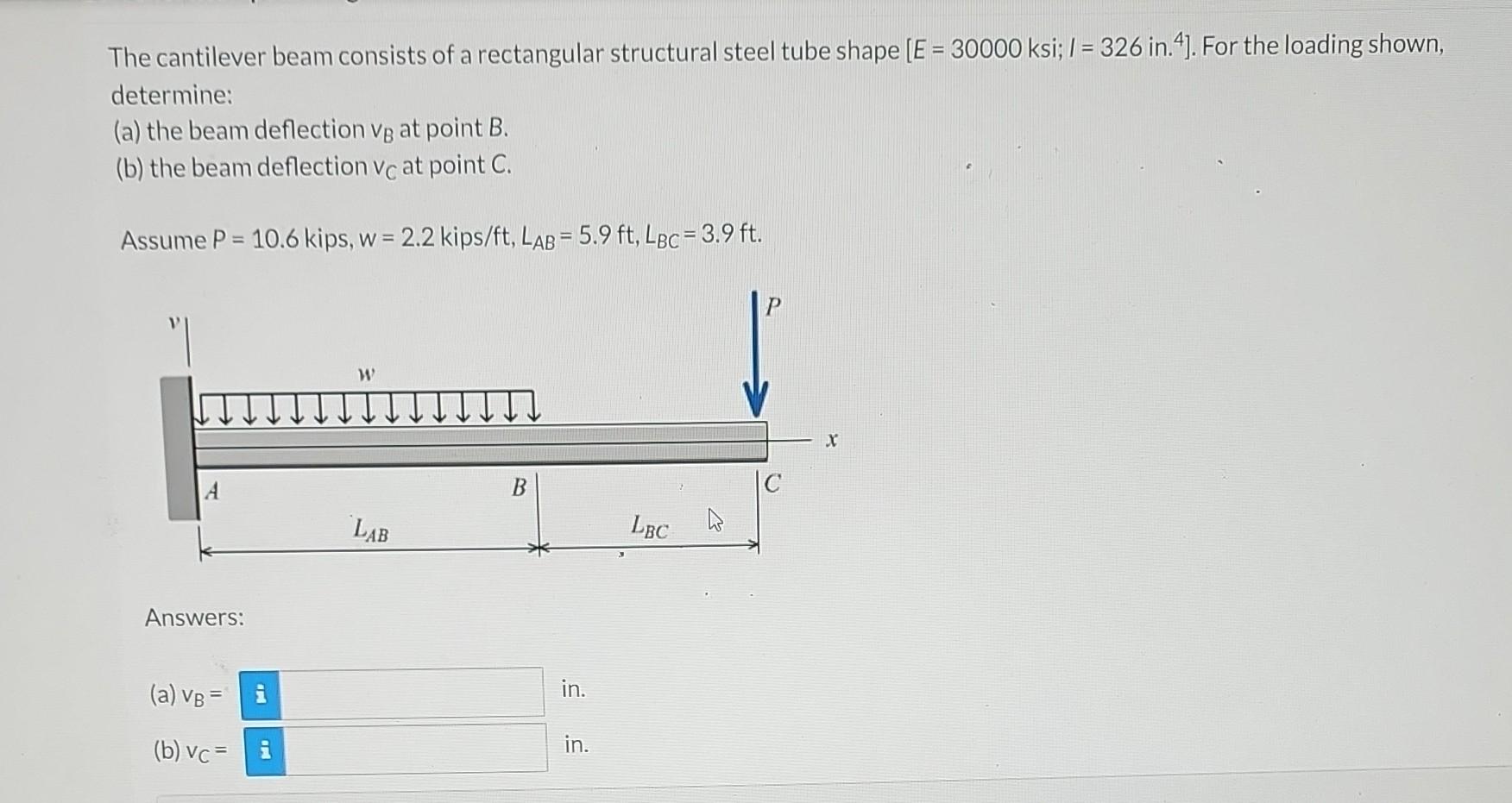

The cantilever beam consists of a rectangular structural steel tube shape [E = 30000 ksi; 1= 326 in.4]. For the loading shown, determine: (a) the beam deflection vg at point B. (b) the beam deflection vc at point C. Assume P=10.6 kips, w = 2.2 kips/ft, LAB = 5.9 ft, LBC= 3.9 ft. "| W LAB LBC A Answers: (a) VB = (b) vc= 3 in. in. X
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
