QUESTION 2 [15] A centrifugal pump delivers water at 1.41 m³/min at a speed of 1450 rpm. The impeller has a diameter of

Post by answerhappygod »

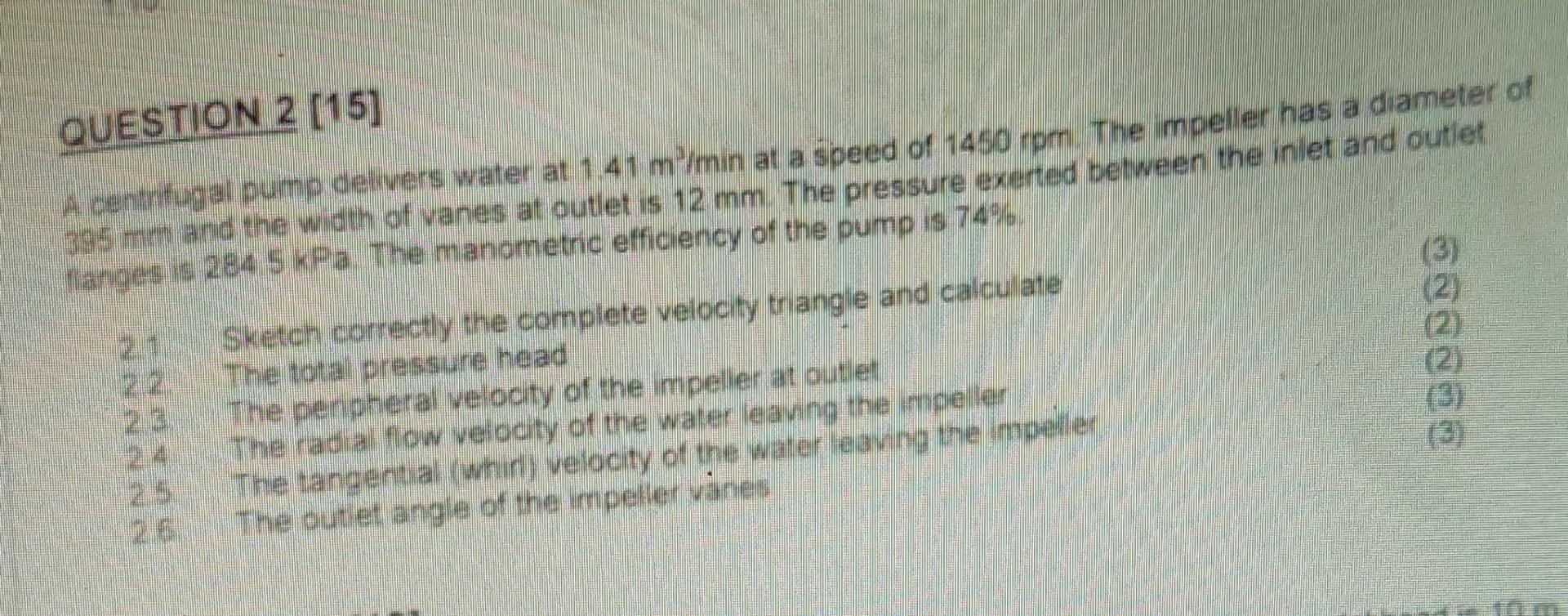

Question 2 15 A Centrifugal Pump Delivers Water At 1 41 M Min At A Speed Of 1450 Rpm The Impeller Has A Diameter Of 1
Question 2 15 A Centrifugal Pump Delivers Water At 1 41 M Min At A Speed Of 1450 Rpm The Impeller Has A Diameter Of 1 (307.47 KiB) Viewed 53 times
QUESTION 2 [15] A centrifugal pump delivers water at 1.41 m³/min at a speed of 1450 rpm. The impeller has a diameter of 395 mm and the width of vanes at outlet is 12 mm. The pressure exerted between the inlet and outlet Tanges is 284 5 kPa. The manometric efficiency of the pump is 74% 21. Sketch correctly the complete velocity triangle and calculate The total pressure head 12.2 The penipheral velocity of the impeller at outlet The radial flow velocity of the water leaving the impeller The tangential (whirl) velocity of the water leaving the impell The outlet angle of the impeller vår ANA
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
