When the weight of block B to maintain equilibrium is maximum, the tensile forces in the four segments of the cord are T

[answerhappygod]

When The Weight Of Block B To Maintain Equilibrium Is Maximum The Tensile Forces In The Four Segments Of The Cord Are T 1 (43.13 KiB) Viewed 51 times

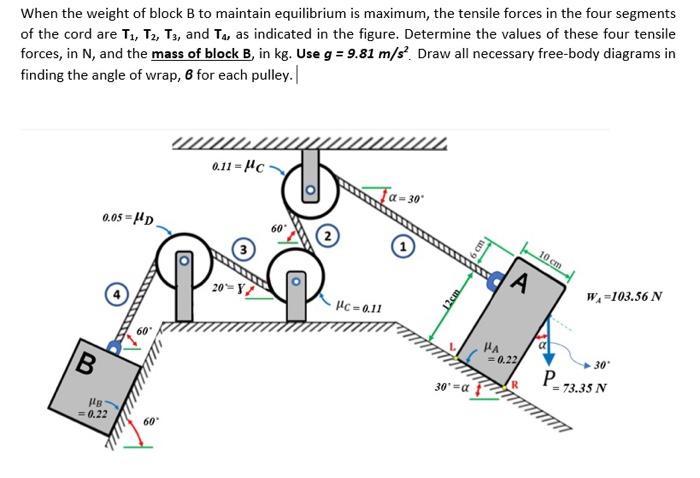

When the weight of block B to maintain equilibrium is maximum, the tensile forces in the four segments of the cord are T₁, T2, T3, and T4, as indicated in the figure. Determine the values of these four tensile forces, in N, and the mass of block B, in kg. Use g = 9.81 m/s² Draw all necessary free-body diagrams in finding the angle of wrap, 6 for each pulley. www 0.11=Mc a=30° 0.05 HD 20 Y WA-103.56 N 60" 30° 73.35 N B HB = 0.22 60" Pc=0.11 30' =α 6 cm HA A = 0.22/ R 10 cm P
