Question 3 Determine the magnitude of the resultant force. a) 894.4 N b) 1200 N c) 982.6 N d) 848.5 N e) 739.1 N Questio

[answerhappygod]

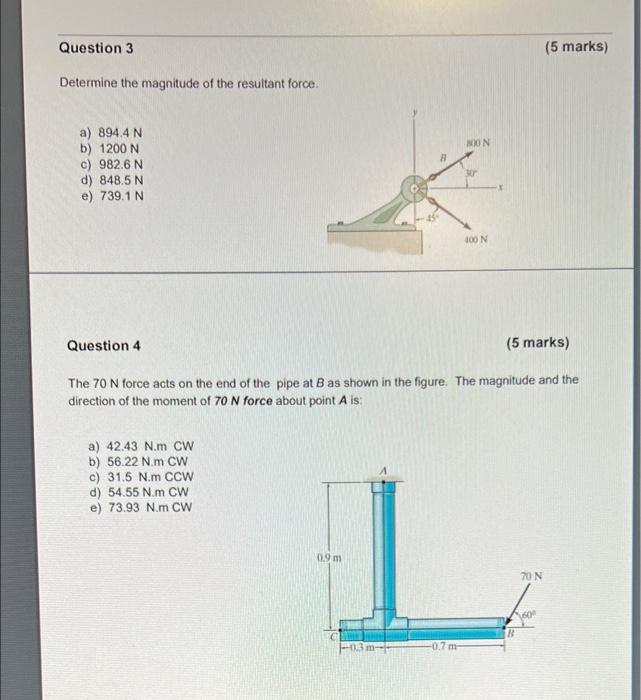

Question 3 Determine The Magnitude Of The Resultant Force A 894 4 N B 1200 N C 982 6 N D 848 5 N E 739 1 N Questio 1 (50.88 KiB) Viewed 41 times

Question 3 Determine the magnitude of the resultant force. a) 894.4 N b) 1200 N c) 982.6 N d) 848.5 N e) 739.1 N Question 4 (5 marks) The 70 N force acts on the end of the pipe at B as shown in the figure. The magnitude and the direction of the moment of 70 N force about point A is: a) 42.43 N.m CW b) 56.22 N.m CW c) 31.5 N.m CCW d) 54.55 N.m CW e) 73.93 N.m CW 0.9 m 70 N 60⁰ -0.3 m- -0.7 m 800 N (5 marks) 400 N
