Replace the three forces which act on the bent bar by a force-couple system at the support point A. Then determine the x

[answerhappygod]

Replace The Three Forces Which Act On The Bent Bar By A Force Couple System At The Support Point A Then Determine The X 1 (87.95 KiB) Viewed 32 times

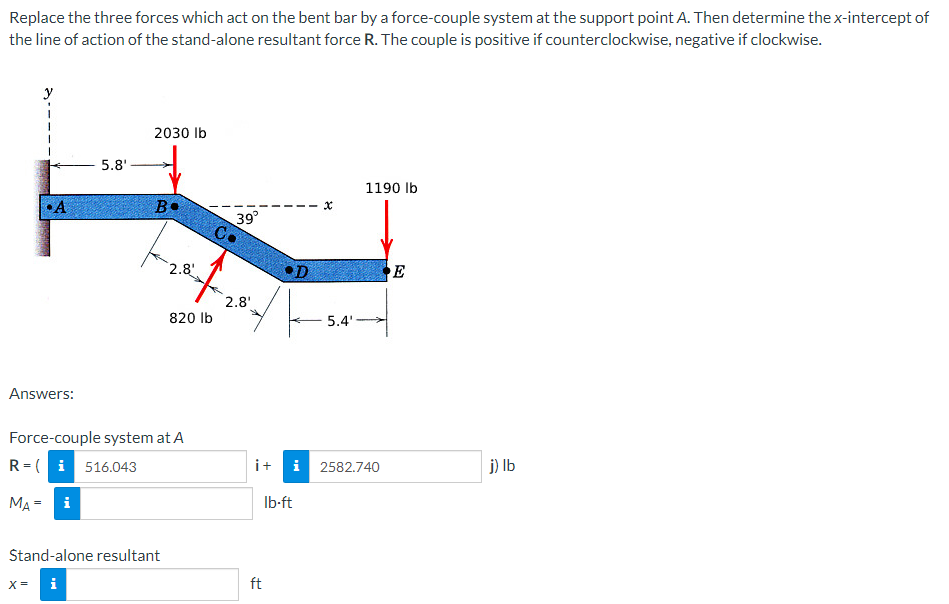

Replace the three forces which act on the bent bar by a force-couple system at the support point A. Then determine the x-intercept of the line of action of the stand-alone resultant force R. The couple is positive if counterclockwise, negative if clockwise. 2030 lb 5.8' 1190 lb В. E •A Answers: Force-couple system at A R=( 516.043 MA = i Stand-alone resultant x= i 2.8' 820 lb C 39° 2.8' D i+ i lb-ft ft x 5.4' 2582.740 j) lb
