The cantilever beam consists of a rectangular structural steel tube shape [E = 28000 ksi; / = 502 in.4]. For the loading

Post by answerhappygod »

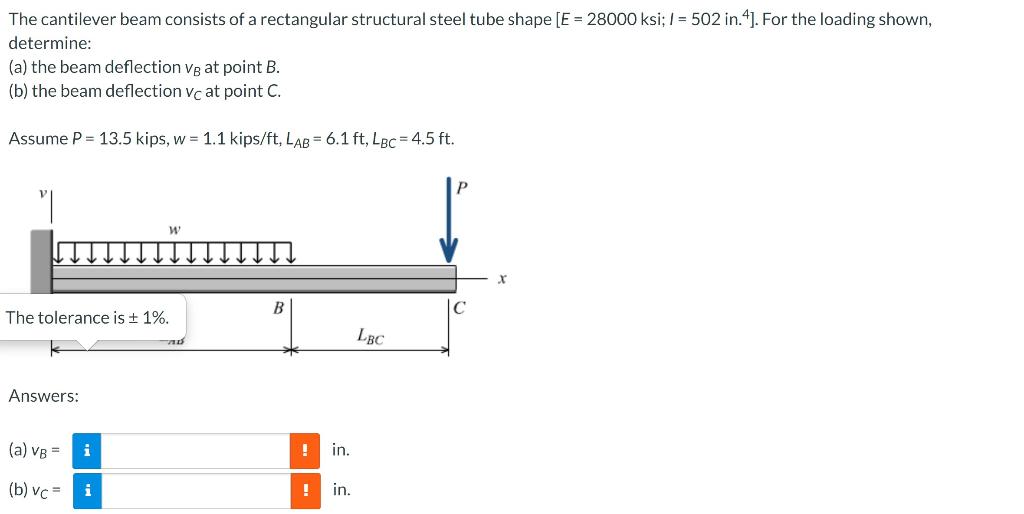

The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 28000 Ksi 502 In 4 For The Loading 1
The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 28000 Ksi 502 In 4 For The Loading 1 (38.14 KiB) Viewed 50 times
The cantilever beam consists of a rectangular structural steel tube shape [E = 28000 ksi; / = 502 in.4]. For the loading shown, determine: (a) the beam deflection vg at point B. (b) the beam deflection vc at point C. Assume P = 13.5 kips, w = 1.1 kips/ft, LAB= 6.1 ft, LBC= 4.5 ft. W B C The tolerance is ± 1%. LBC Ad Answers: (a) VB = i (b) vc i in. ! in.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
