Current Attempt in Progress The solid 29-mm-diameter steel (E-180 GPa) shaft supports two belt pulleys. Assume that the

Post by answerhappygod »

Current Attempt In Progress The Solid 29 Mm Diameter Steel E 180 Gpa Shaft Supports Two Belt Pulleys Assume That The 1
Current Attempt In Progress The Solid 29 Mm Diameter Steel E 180 Gpa Shaft Supports Two Belt Pulleys Assume That The 1 (20.28 KiB) Viewed 60 times

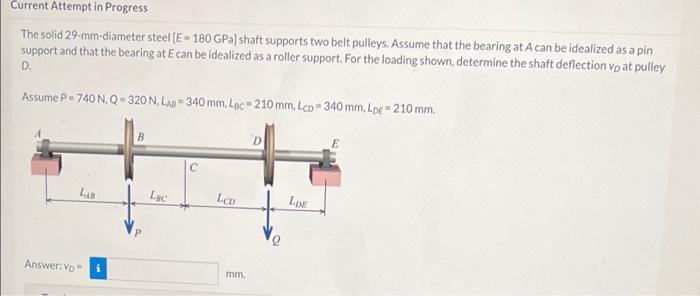

Current Attempt in Progress The solid 29-mm-diameter steel (E-180 GPa) shaft supports two belt pulleys. Assume that the bearing at A can be idealized as a pin support and that the bearing at E can be idealized as a roller support. For the loading shown, determine the shaft deflection vo at pulley D. Assume P=740 N.Q-320 N, LAB 340 mm, Lac 210 mm. Lco 340 mm, Loc=210 mm. B C LAB LDE Answer: Vp Lac LCD mm.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
