The cantilever beam shown in the figure consists of a rectangular structural steel tube shape [E = 200 GPa; I = 95 × 106

Post by answerhappygod »

The Cantilever Beam Shown In The Figure Consists Of A Rectangular Structural Steel Tube Shape E 200 Gpa I 95 106 1
The Cantilever Beam Shown In The Figure Consists Of A Rectangular Structural Steel Tube Shape E 200 Gpa I 95 106 1 (77 KiB) Viewed 56 times

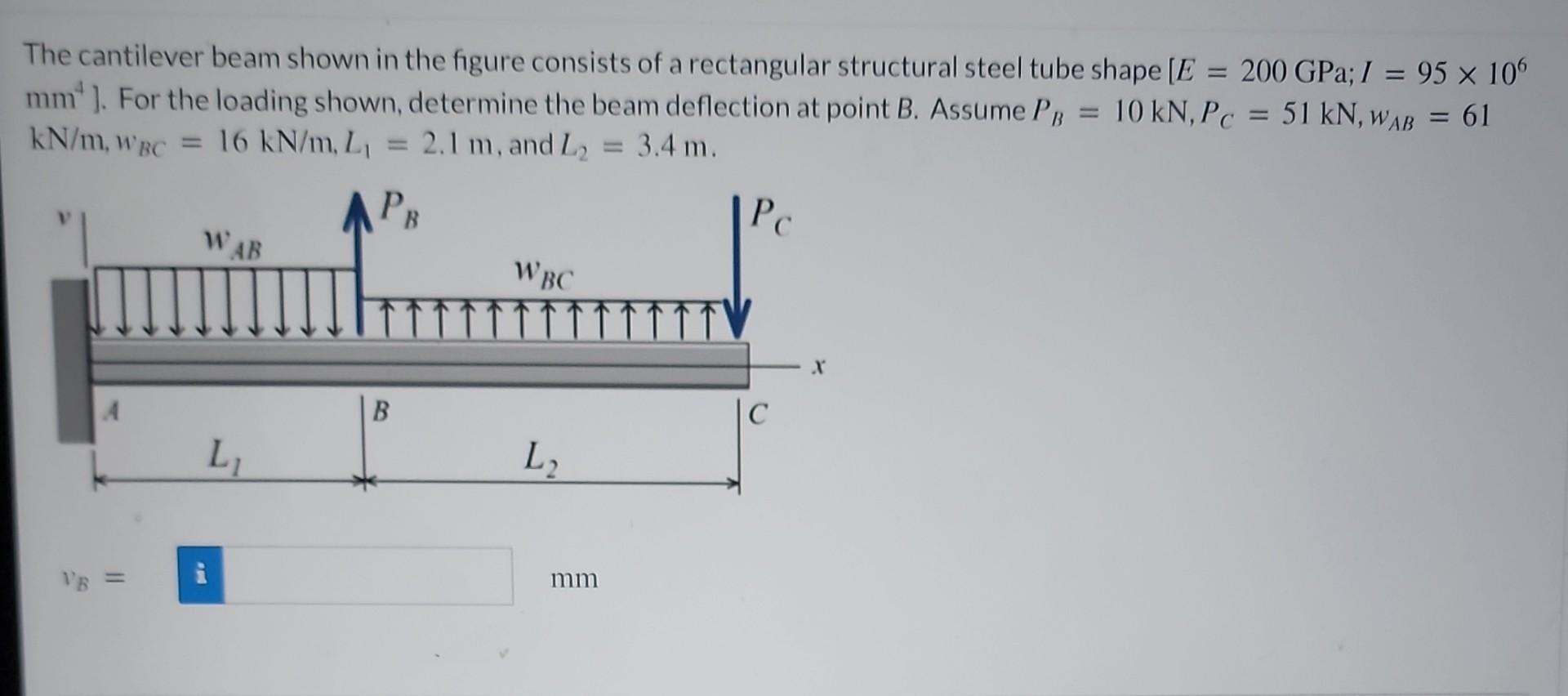

The cantilever beam shown in the figure consists of a rectangular structural steel tube shape [E = 200 GPa; I = 95 × 106 mm]. For the loading shown, determine the beam deflection at point B. Assume PB = 10 kN, Pc = 51 kN, WAB = 61 kN/m, WBC = 16 kN/m, L₁= 2.1 m, and L₂= 3.4 m. Pc АРВ WAB WBC B L₂ L₁ VB = mm C
